Product Specifications

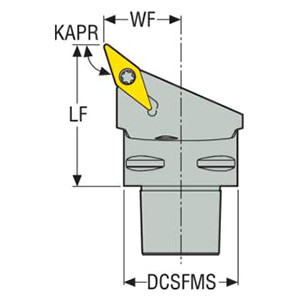

| Manufacturer Part Number | 75065644 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 3.740" |
| Minimum Cutting Diameter Internal (mm) | 95.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 6.496" |
| Minimum Cutting Diameter Internal 3 (mm) | 165.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Functional Width (Decimal Inch) | 1.063" |
| Functional Width (mm) | 27.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 107.5 Degree |
| Tool Cutting Edge Angle Code | H |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 127.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 107.5 Degree |
| Insert Shape Code | V |
| Shank Type | Seco-Capto |
| Product Type | Modular Turning Head |
