Features:
- Fractional diameters ranging from 0.1285"- 0.2610"
- Metric diameters ranging from 3,2 - 6,7mm
- All items on 1/8" common shank to suit global application demands
- 130 degree point angle
- Optimal end geometry ideal for targeted non-ferrous materials
- 4-faceted point geometry provides centering assistance upon entry
- Mirror surface finish is applied to allow for smooth chip flow
- Wide diameters offer ability to drill larger than average holes than is commonly possible in micro spindles

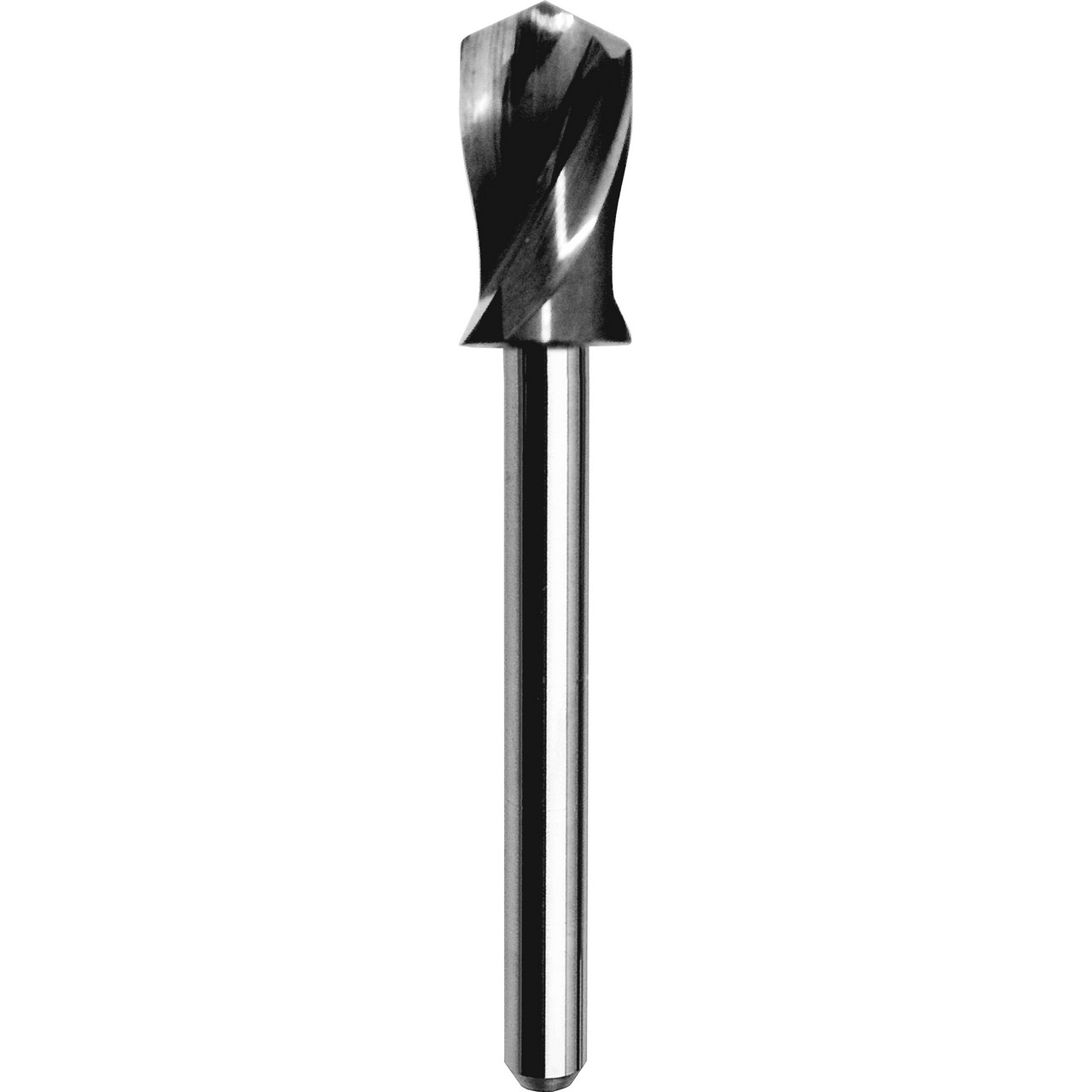

Product Specifications
| Wire Diameter | #16 |
| Cutting Diameter (Inch) | 0.177" |
| Shank Diameter (Inch) | 0.125" |
| Length of Cut (Inch) | 1/2" |
| Overall Length (Inch) | 1-1/2" |
| Shank Length (Inch) | 1" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 0.5" |
| Helix Angle | 30 Degree |
| Point Angle | 130 Degree |
| Coating | Uncoated |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Drill Point Angle:
130°
Finish/Coating:
UN
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
