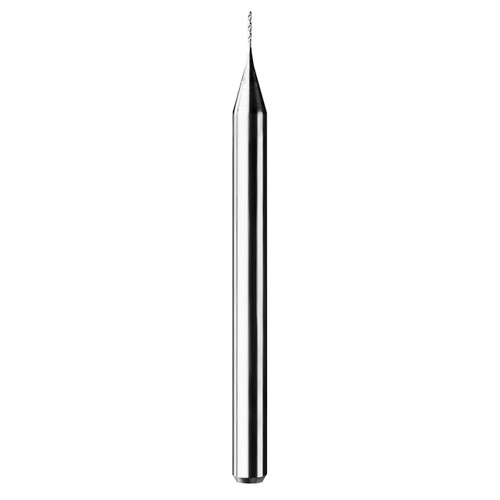

SGS 07208 | #39 x 0.125" Shank x 0.400" LOC x 1-1/2" OAL 2 Flute AlTiN Coated Micro Drill Bit

$11.04 $7.18
(You save $3.86)
Brand:
SGS
Drill Point Angle:
130 Degree
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.125"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Finish/Coating:
TA
interval quantity:
1
SKU:
10227821
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • 4-facet point design stabilizes on entry for superior hole size control and tool life
  • Mirror surface finishes improve chip flow as hole depth increases
  • Ti-Namite A coating and uncoated options for the ultimate performance in a variety of ferrous and non-ferrous workpiece materials
  • Application specific sub-micron grain carbide designed specifically for microtool applications
  • Manufactured in accordance with KSPT ISO certified quality procedures

Product Specifications
Wire Diameter#39
Cutting Diameter (Inch)0.1"
Shank Diameter (Inch)0.125"
Length of Cut (Inch)0.400"
Overall Length (Inch)1-1/2"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
Point Angle130 Degree
CoatingAlTiN
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Drill Point Angle:
130 Degree
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.125"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Finish/Coating:
TA
interval quantity:
1
