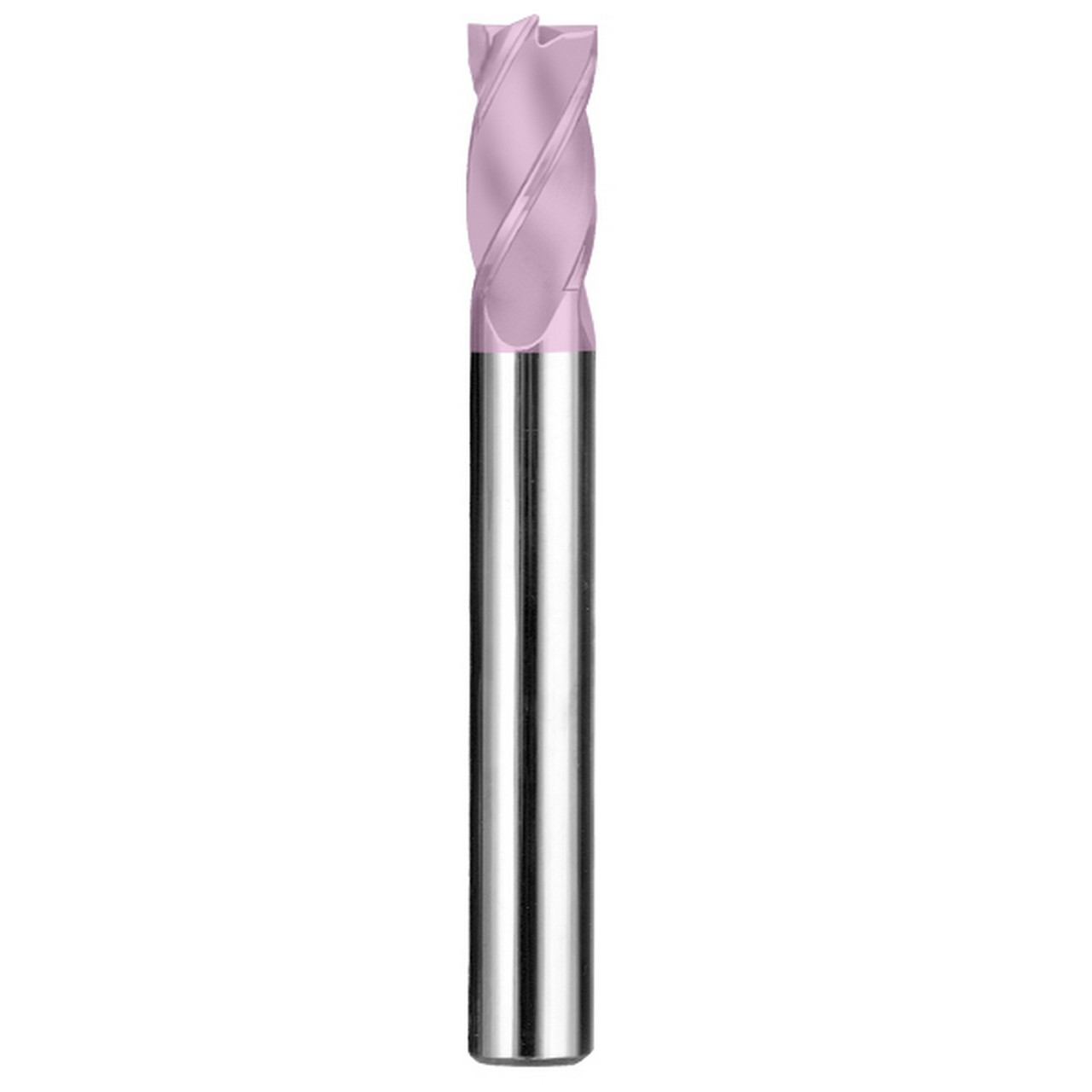

SGS 39031 | 1/4" Diameter x 1/4" Shank x 3/4" LOC x 2-1/2" OAL 4 Flute TiCN Coated Square End Mill

$15.79
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Finish/Coating:
TC
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25197933
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)3/4"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.75"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingTiCN
Number of Flutes4
