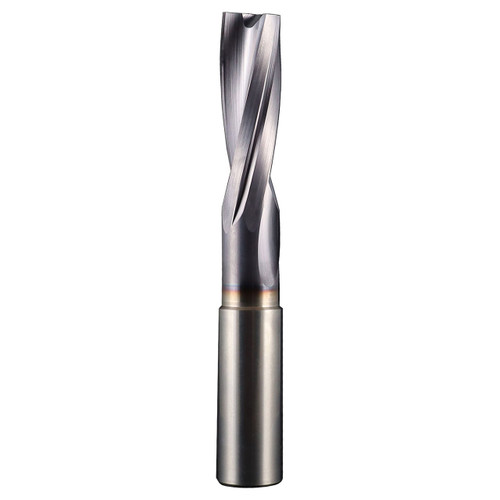

SGS 58534 | 0.516" Diameter x 0.551" Shank x 3.937" OAL x 180 Degree 2 Flute TX (Ti-NAMITE-X) Coated Flat Bottom Drill

$136.01
Brand:
SGS
Cutting Diameter (Inch):
33/64"
Cutting Diameter (Decimal Inch):
0.5160"
Cutting Diameter (mm):
13.10mm
Shank Diameter (Inch):
27/49"
Shank Diameter (Decimal Inch):
0.5510"
Shank Diameter (mm):
14.00mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Size:
33/64"
Finish/Coating:
TX (Ti-NAMITE-X)
Number of Flute:
2
Point Angle (Degree):
180 Degree
interval quantity:
1
SKU:
10234548
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
SGS 58534 | 0.516" Diameter x 0.551" Shank x 3.937" OAL x 180 Degree 2 Flute TX (Ti-NAMITE-X) Coated Flat Bottom Drill

Features:

  • 4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for materials ≤ 56 HRc (≤ 577 Bhn)

Product Specifications
Manufacturer Part Number58534
Size33/64"
Cutting Diameter (Inch)33/64"
Cutting Diameter (Decimal Inch)0.516"
Cutting Diameter (mm)13.10mm
Shank Diameter (Decimal Inch)0.551"
Shank Diameter (mm)14.00mm
Flute Length (Decimal Inch)1.811"
Flute Length (mm)46.00mm
Usable Length (Decimal Inch)1.071"
Usable Length (mm)27.19mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Shank Length (Decimal Inch)1.811"
Shank Length (mm)46.00mm
Shank Diameter Toleranceh6
Point Angle (Degree)180 Degree
Flute TypeSpiral
Number of Margins4
Number of Flutes2
Reach (xD)2xD
Center CuttingNo
Double MarginsYes
High PerformanceYes
Self CenteringYes
CoatingTX (Ti-NAMITE-X)
Product TypeFlat Bottom Drill
