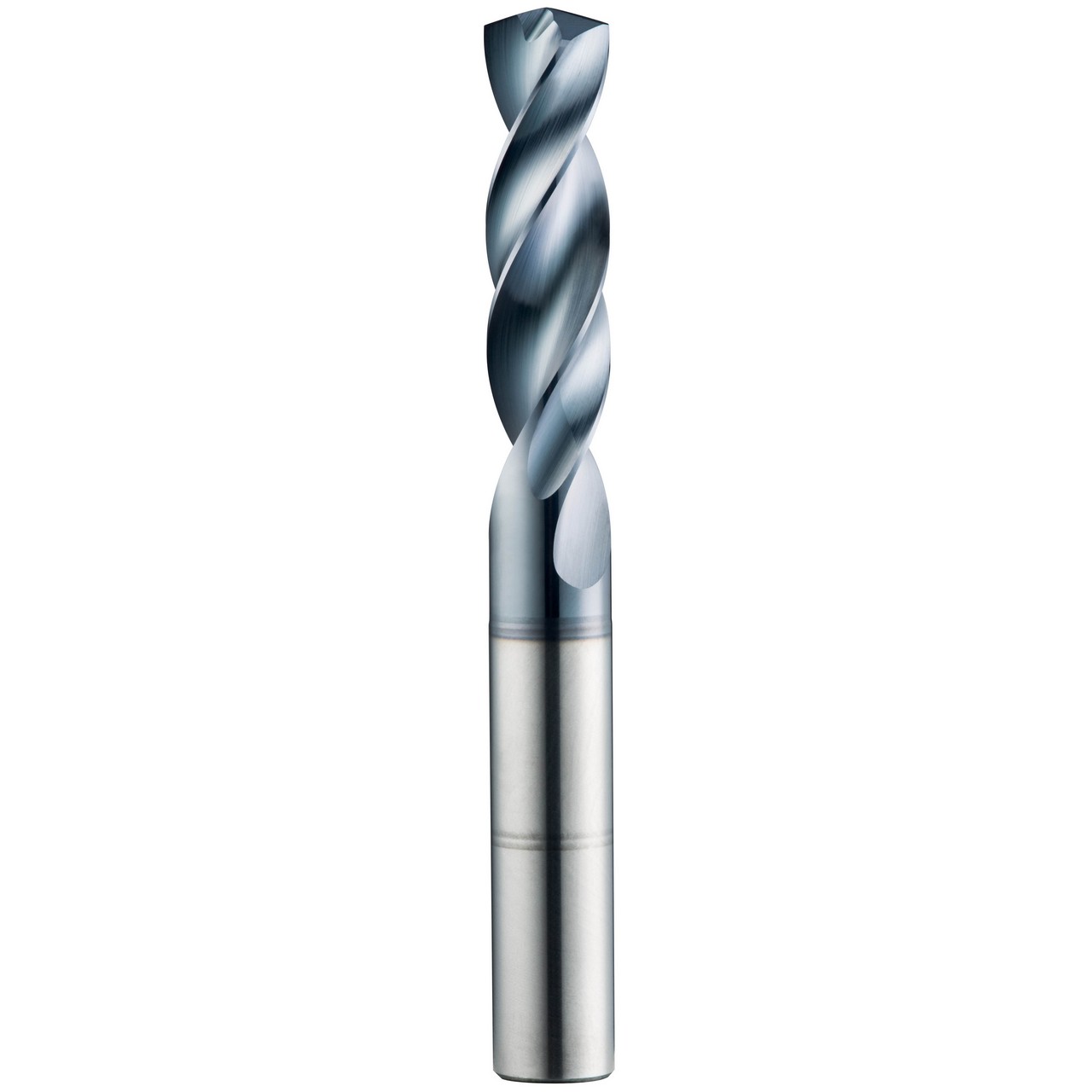

Features:
- Double margin design improves accuracy and surface finish along with increased strength for aggressive drilling
- Specialized selfcentering notched point eliminates the need for spot drilling decreasing thrust and deflection
- Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
- Recommended for materials ≤ 56 HRc (≤ 577 Bhn)
Product Specifications
| Wire Diameter | #50 |
| Cutting Diameter (Inch) | 0.07" |
| Shank Diameter (Inch) | 0.125" |
| Length of Cut (Inch) | 15/32" |
| Overall Length (Inch) | 2" |
| Shank Length (Inch) | 1.25" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 0.3594" |
| Helix Angle | 32 Degree |
| Point Angle | 145 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Flute Type:
Spiral
Drill Point Angle:
145°
Overall Length (Inch):
3.5039"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
50.8mm
Cutting Direction:
RHC
Finish/Coating:
TA
