Features

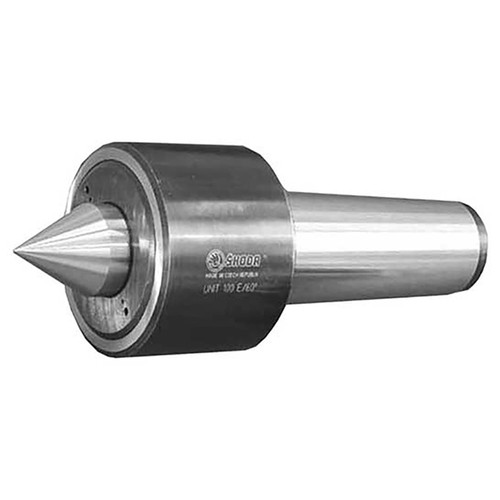

- The rotating spindle is extended right through the tapered shank
- Two specially designed adjustable needle-roller bearings carry all radial loads
- A heavy duty ball thrust bearing takes all axial thrust
- Complete protection of bearings form the ingress of coolant, dirt or swarf is provided by the built-in oil-seal, which also prevents loss of lubricant
Product Specifications
| Manufacturer Part Number | 310130 |
| Shank Type | Taper Shank |
| Taper Size | MT6 |
| Maximum Workpiece Weight (lbs.) | 8800 lbs. |
| Point Diameter (Inch) | 2-3/8" |
| Included Angle (Degree) | 60 Degree |
| Model Number | CSN 243324 |
| Head Diameter (Inch) | 3-1/2" |
| Overall Length (Inch) | 12-3/4" |
| Product Type | Live Center |
