Features
- Single-hand operation with right- and left-hand viewing flexibility
- Large, easy-to-read digital display with integrated LEDs tolerances
- Enhanced wear life with carbide-faced contacts - available from 1/2" to 8"
- True alignment with mechanically-driven parallel anvils
- Push button inch/metric conversion
- Preset and preset recall
- Hold, max/min and zeroing capabilities
- Blind bore measurement is standard from .50" (12.7mm) and above
- Bluetooth Output capability for Statistical Process Control (SPC) analysis
Product Specifications
| Range (in) | 3/4 - 1" |
| Range (mm) | 20-25mm |
| Resolution (in) | .00005" |
| Resolution (mm) | 0.001mm |
| SPC Output | SPC Output |
| Approximate Measuring Depth (in) | 2 5/8" |
| Approximate Measuring Depth (mm) | 66mm |
| Accuracy (in) | .00015" |
| Accuracy (mm) | .004mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

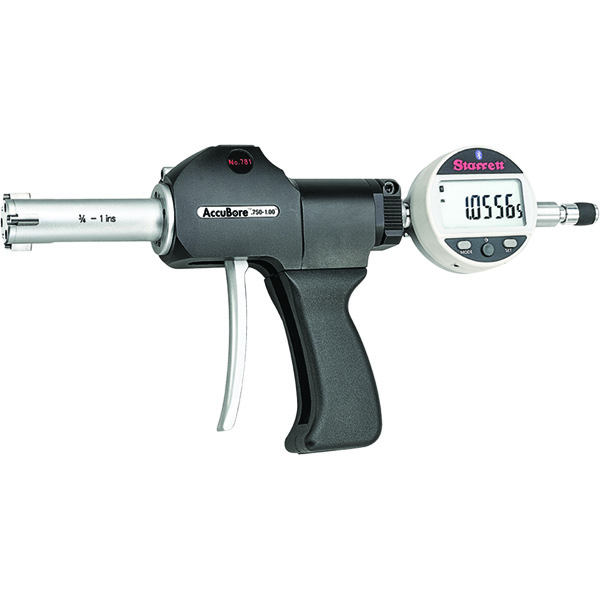

Brand:
Starrett
Type:
AccuBore Gage
Minimum Measurement (Inch):
3/4"
Minimum Measurement (Decimal Inch):
0.7500"
Minimum Measurement (mm):
20mm
Maximum Measurement (Inch):
1"
Maximum Measurement (Decimal Inch):
1.0000"
Maximum Measurement (mm):
25mm
Gage Depth (Inch):
2-5/8"
Gage Depth (Decimal Inch):
2.6250"
Gage Depth (mm):
66mm
Resolution (Inch):
0"
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.001mm
Ships:
From Manufacturer
