Features

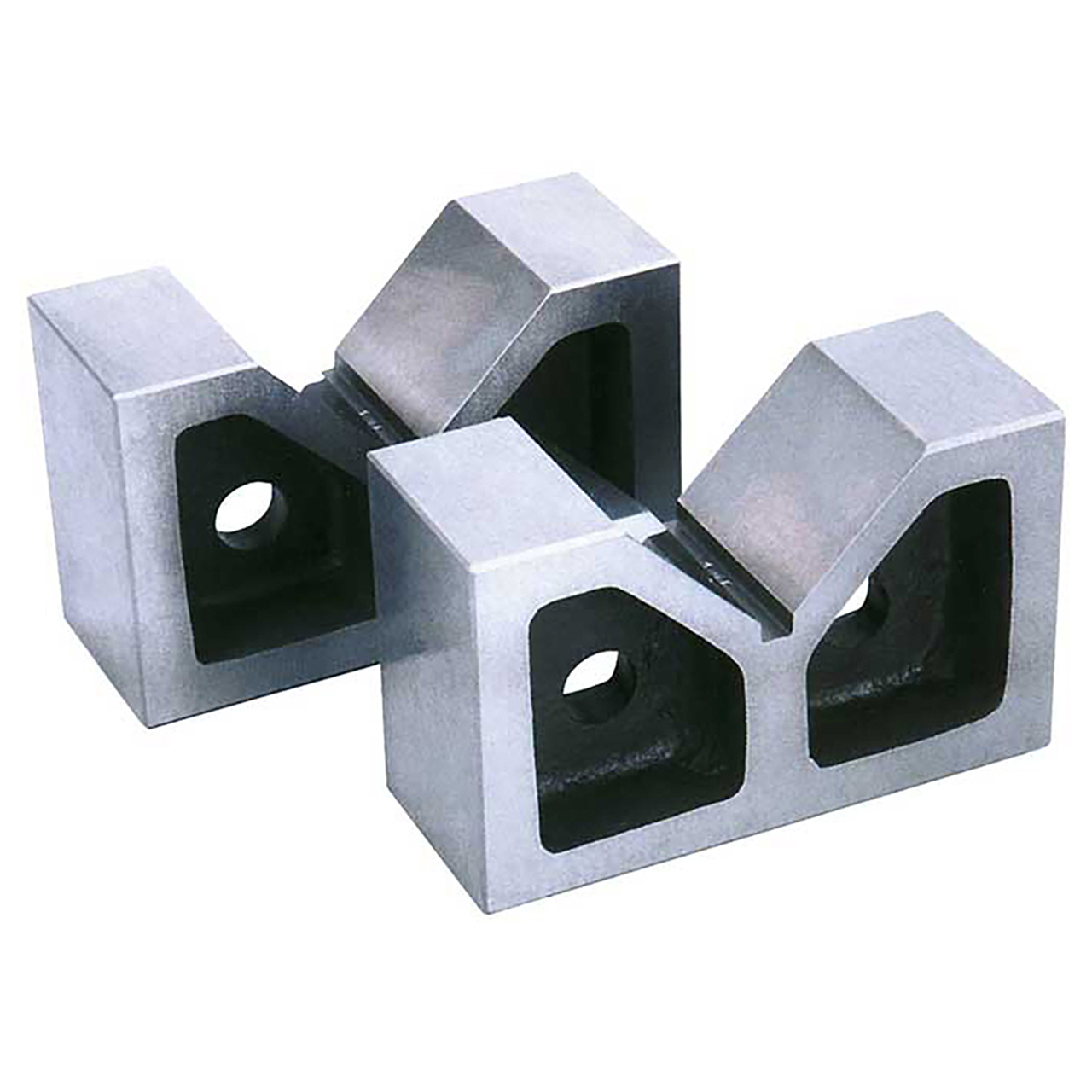

- The Vee's are 90 degree centered in true
- Made from close grained cast iron, these blocks are precisely ground and machined square and parallel
- The blocks are manufactured and supplied in numbered pairs and come in handy for holding large jobs where clamping is not necessary
- Squareness and Parallelism of Vee grooves: within 0.0012" (30 microns)
Product Specifications
| Manufacturer Part Number | 231106 |
| Sold As | Pair |
| Overall Length (Inch) | 5" |
| Overall Width (Inch) | 2" |
| Overall Height (Inch) | 3-1/8" |
| V Angle (Degree) | 90 Degree |
| Magnetic | No |
| Material | Cast Iron |
| Model Number | VB/C-5 |
| Squareness Per 1 Inch (Decimal Inch) | 0.0012" |
| Product Type | V-Block |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Overall Width (Inch):
2"
Overall Width (Decimal Inch):
2.0000"
Overall Width (mm):
50.80mm
Overall Height (Inch):
3-1/8"
Overall Height (Decimal Inch):
3.1250"
Overall Height (mm):
79.38mm
V Angle:
90 Degree
