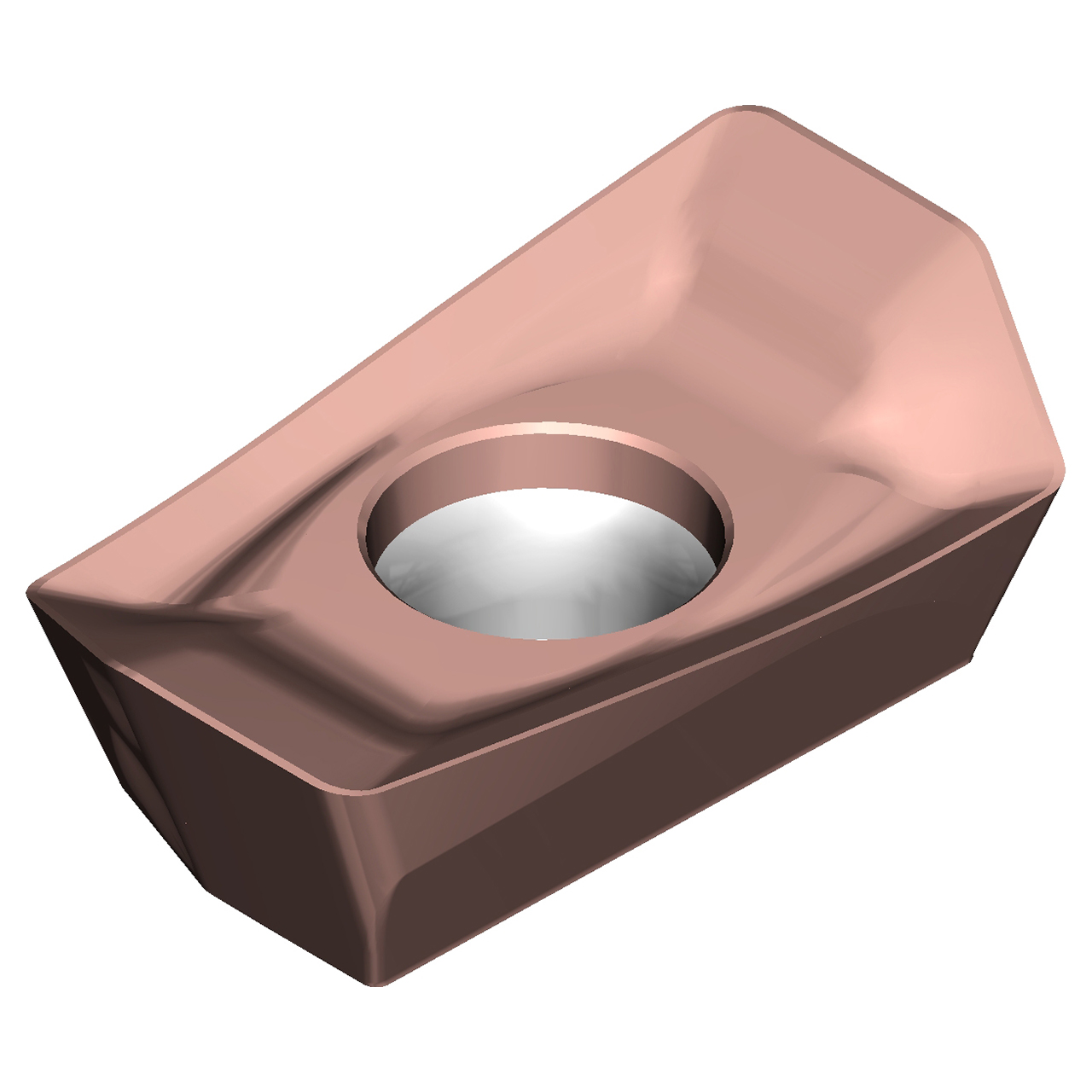

Sumitomo 14U1AKV| AOMT170508PEER-G-ACK3000 15.00mm Maximum Depth Cut x 0.80mm Radius x 5.50mm Thickness Carbide ACK3000 Coated WEZ Milling Insert

$12.82 $11.54
(You save $1.28)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
AOMT
Insert Size:
1705
Material:
Carbide
Manufacturer's Grade:
ACK3000
Coating:
ACK3000
Width (Inch):
3/4"
Width (Decimal Inch):
0.7677"
Width (mm):
19.50mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.2165"
Thickness (mm):
5.50mm
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23168657
Weight:
0.25 LBS
Shipping:
Free Shipping
Sumitomo 14U1AKV| AOMT170508PEER-G-ACK3000 15.00mm Maximum Depth Cut x 0.80mm Radius x 5.50mm Thickness Carbide ACK3000 Coated WEZ Milling Insert

Product Specifications
EDP Number14U1AKV
Product Code-ANSIAOMT170508PEER-G-ACK3000
Manufacturer Grade IdentificationACK3000
SeriesWEZ
Maximum Depth of Cut (mm)15.00mm
Cutting Edge Length (Decimal Length)0.7677"
Cutting Edge Length (mm)19.50mm
Nose Radius (Decimal Inch)0.0315"
Nose Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.2165"
Insert Thickness (mm)5.50mm
CoatingACK3000
Coating ProcessPVD
Insert StyleAOMT
Insert SideSingle
Insert Size1705
Chip BreakerG
Tolerance ClassM
Insert HandR
Insert MaterialCarbide
