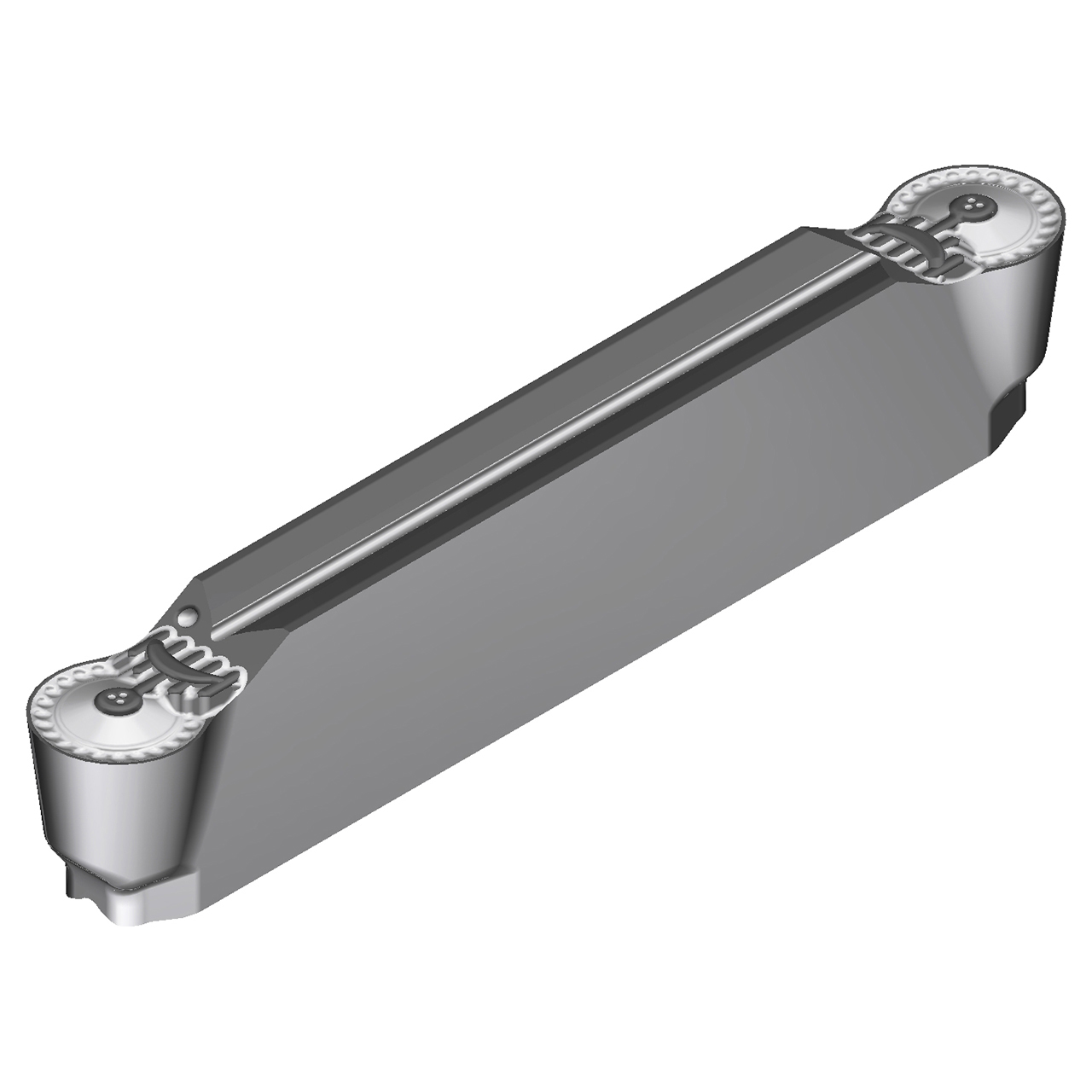

Sumitomo 18P7APF | GCMN6030-RN-AC8025P 0.2362" Cutting Width x 0.1181" Radius x 0.1772" Thickness Absotech Coated Carbide GND Grooving Insert

$36.77 $29.42
(You save $7.35)
Brand:
Sumitomo
Material:
Carbide
Cutting Width (Inch):
1/4"
Cutting Width (Decimal Inch):
0.2362"
Cutting Width (mm):
6.00mm
Maximum Depth of Cut (Inch):
1"
Maximum Depth of Cut (Decimal Inch):
1.0000"
Maximum Depth of Cut (mm):
25.00mm
Manufacturer's Grade:
AC8025P
Coating:
Absotech
Insert Hand:
N
Cutting Height (Inch):
3/16"
Cutting Height (Decimal Inch):
0.1772"
Cutting Height (mm):
4.50mm
interval quantity:
1
SKU:
23172708
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 18P7APF | GCMN6030-RN-AC8025P 0.2362" Cutting Width x 0.1181" Radius x 0.1772" Thickness Absotech Coated Carbide GND Grooving Insert

Product Specifications
EDP Number18P7APF
Product Code - ANSIGCMN6030-RN-AC8025P
Manufacturer Grade IdentificationAC8025P
SeriesGND
Maximum Depth of Cut (Decimal Inch)1.0000"
Maximum Depth of Cut (mm)25.00mm
Cutting Width (Decimal Inch)0.2362"
Cutting Width (mm)6.00mm
Height (Decimal Inch)0.1772"
Nose Radius (Decimal Inch)0.1181"
Nose Radius (mm)3.00mm
Insert Thickness (Decimal Inch)0.1772"
Insert Thickness (mm)4.50mm
Relief Angle7 Degree
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationP, K
Primary Workpiece MaterialP, K
Secondary Workpiece MaterialP, K
Chip BreakerRN
Insert HandN
Insert MaterialCarbide
