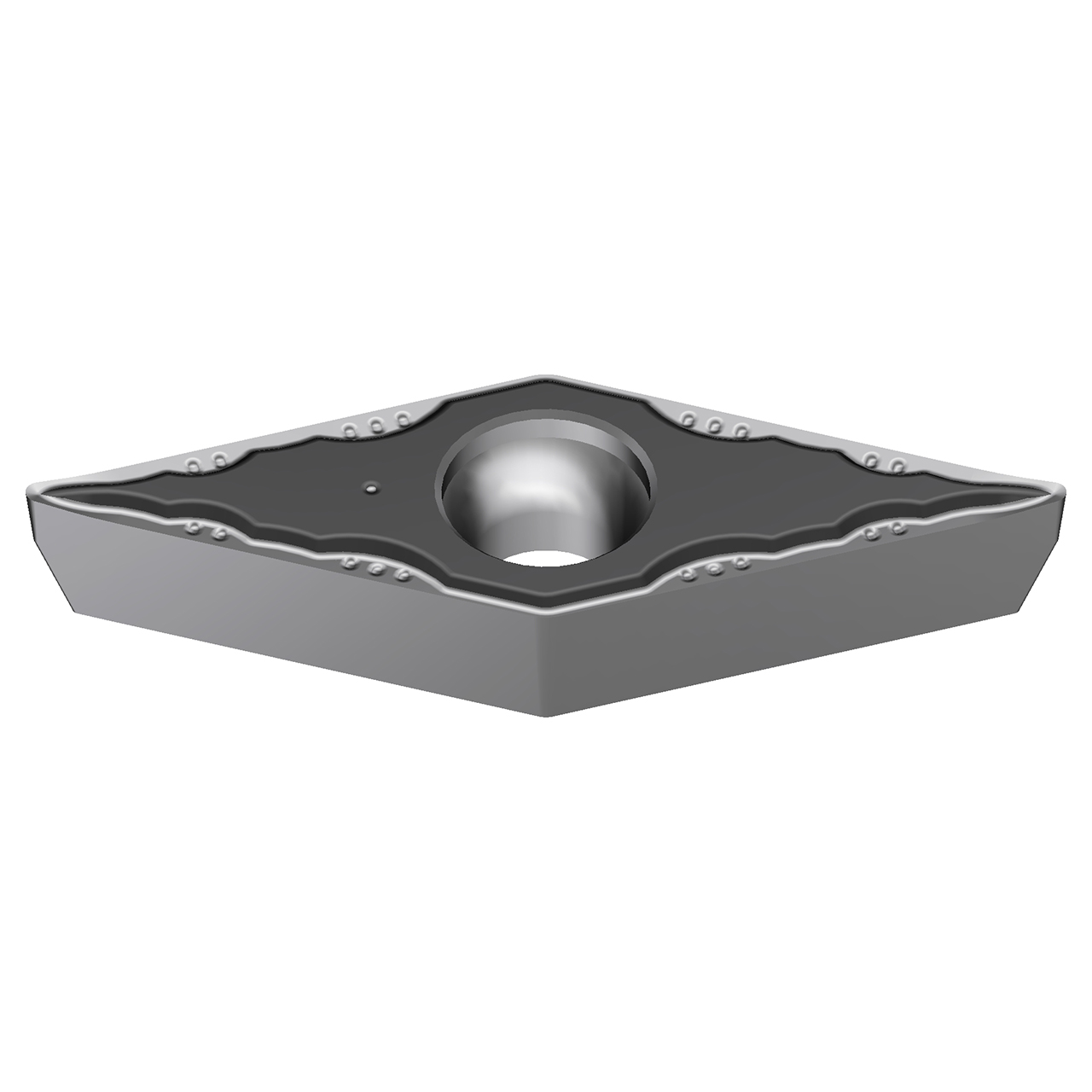

Sumitomo 1N6C041 | VBGT220MESI-AC6030M 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0039" Radius Absotech Coated Carbide Turning Insert - All Industrial Tool Supply

Sumitomo 1N6C041 | VBGT220MESI-AC6030M 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0039" Radius Absotech Coated Carbide Turning Insert

$11.93 $10.74
(You save $1.19)
Total Price: $107.40

This product is sold in increments of 10

Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
VBGT
Insert Size:
220
Material:
Carbide
Length (Inch):
7/16"
Length (Decimal Inch):
0.4370"
Length (mm):
11.10mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Decimal Inch):
0.0039"
Corner Radius (mm):
0.10mm
Manufacturer's Grade:
AC6030M
Ships:
From California in 1-2 Days
SKU:
23183988
Weight:
0.10 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number1N6C041
Product Code-ANSIVBGT220MESI-AC6030M
Product Code-ISOVBGT110301MN-SI
Manufacturer Grade IdentificationAC6030M
SeriesAC6000M
Cutting Edge Length (Decimal Inch)0.4370"
Cutting Edge Length (mm)11.10mm
Nose Radius (Decimal Inch)0.0039"
Nose Radius (mm)0.10mm
Inscribed Circle Diameter (Decimal Inch)0.2500"
Inscribed Circle Diameter (mm)6.35mm
Hole Diameter (mm)2.80mm
Insert Thickness (Decimal Inch)0.1252"
Insert Thickness (mm)3.18mm
Relief Angle5 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerMESI
Corner Angle35
Insert StyleVBGT
Primary Workpiece MaterialStainless Steel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationM30, M35, M25
Insert Holding MethodScrew-On
