Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

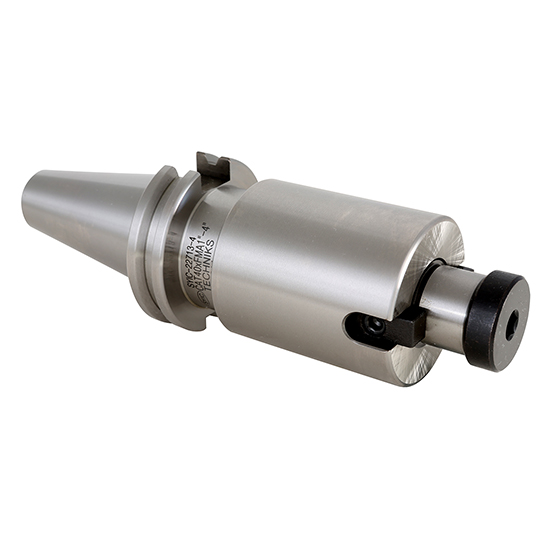

Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.| UNSPSC Code | 27112809 |
| Overall Diameter (in) | 3.875 |
| Overall Diameter (mm) | 98.4 |
| Body Width (in) | 2.2 |
| Body Width (mm) | 55.9 |
| Taper Type | CAT50 |
| Material | 8620 Steel |
| Type | Face Mill Arbor |
| Style | Single Ended |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 1 |
| Hub Diameter (mm) | 25.4 |
| Gage Length (in) | 4 |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (in) | 3.864 |
| Gage Length-Face Contact (mm) | 98.15 |
| Pilot Length (in) | 0.69 |
| Pilot Length (mm) | 17.5 |
