Features:
- Maximum T.I.R. only 0.0001"
- DualDRIVE for dual-contact spindles increases rigidity and accuracy
- CoolFLEX: through spindle and DIN-B coolant enabled

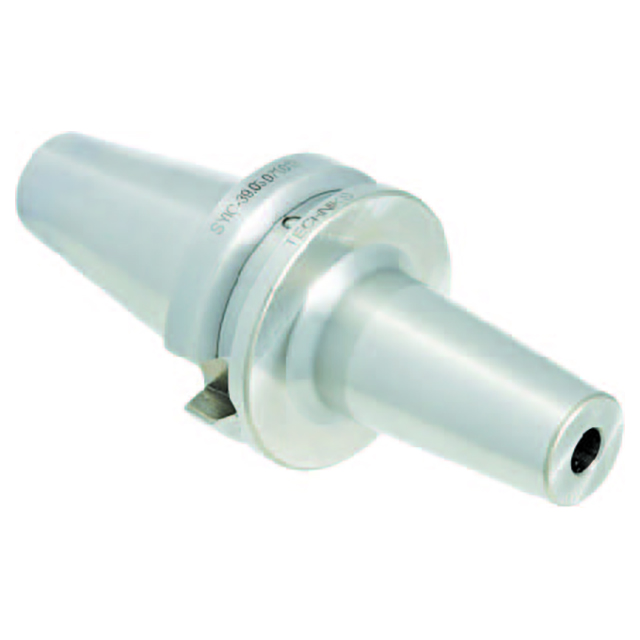

Product Specifications
| Taper | SBT40 |
| Taper Diameter (mm) | 44.45mm |
| Body Diameter (mm) | 34mm |
| Overall Diameter (mm) | 63mm |
| Bore Size (mm) | 16mm |
| Projection Length (mm) | 90mm |
| Nose Diameter (mm) | 27mm |
| Overall Length (mm) | 155.4mm |
| Nose Length (mm) | 58mm |
