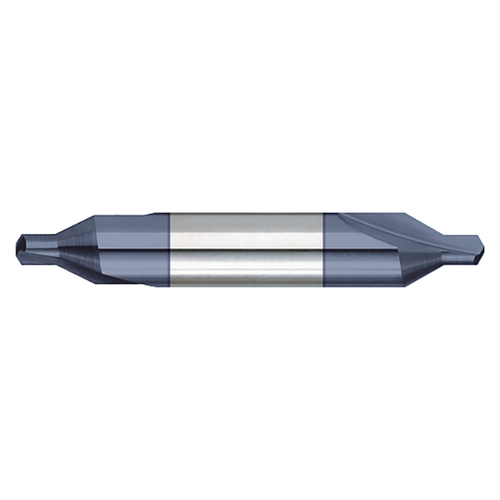

Ground from high speed steel, this offering of Titan USA Combined Drill & Countersinks feature cutting tools that are double-ended, include a 60 Degree included angle.
Features:
- 60 Degree included angle
- Double-ended
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CS10002 |
| Drill Diameter (Inch) | 0.0781" (5/64) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Included Angle (Degree) | 60 Degree |
| Drill Length (Inch) | 0.0781" (5/64) |
| Overall Length (Inch) | 1.8750" (1-7/8) |
| Point Angle (Degree) | 118 Degree |
| Number of Flutes | 2 |
| Size | #2 |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Point Diameter (Inch):
5/64"
Drill Point Diameter (Decimal Inch):
0.0781"
Drill Point Diameter (mm):
1.98mm
Body Diameter (Inch):
3/16"
Body Diameter (Decimal Inch):
0.1875"
Body Diameter (mm):
4.76mm
Trade Size:
#2
Included Angle:
60 Degree
Material:
High Speed Steel
Finish/Coating:
Uncoated
Overall Length (Inch):
1-7/8"
Overall Length (Decimal Inch):
1.8750"
Overall Length (mm):
47.63mm
interval quantity:
6
