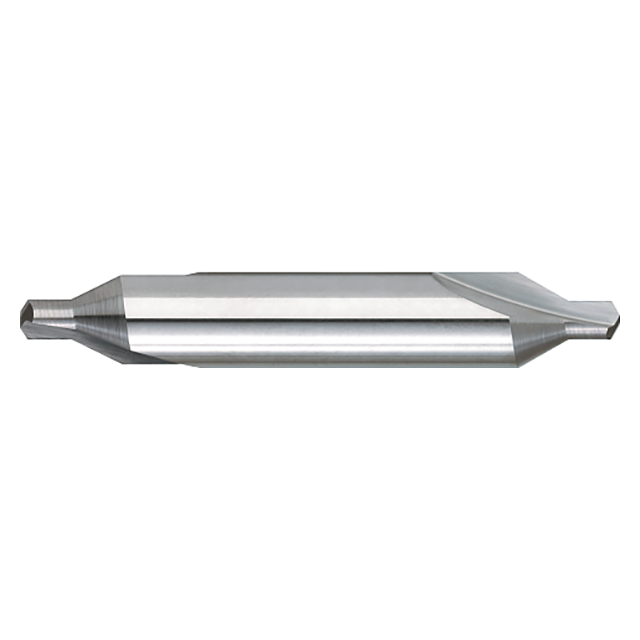

Titan USA CS30003 | 0.1094" (7/64) Diameter x 0.2500" (1/4) Shank x 2.0000" (2) OAL 60 Included Angle 2 Flute Uncoated Carbide Combination Drill & Countersink

$25.61
Brand:
Titan USA
Drill Point Diameter (Inch):
7/64"
Drill Point Diameter (Decimal Inch):
0.1094"
Drill Point Diameter (mm):
2.78mm
Body Diameter (Inch):
1/4"
Body Diameter (Decimal Inch):
0.2500"
Body Diameter (mm):
6.35mm
Trade Size:
#3
Included Angle:
60 Degree
Material:
Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
interval quantity:
1
SKU:
10246717
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

CNC ground in the USA from solid carbide, this offering of Titan USA Combined Drill & Countersinks feature tools that are double-ended, include a 60 Degree included angle.

Features:

  • Double-ended
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberCS30003
Drill Diameter (Inch)0.1094" (7/64)
Shank Diameter (Inch)0.2500" (1/4)
Included Angle (Degree)60 Degree
Drill Length (Inch)0.1094" (7/64)
Overall Length (Inch)2.0000" (2)
Point Angle (Degree)118 Degree
Number of Flutes2
Size#3
SubstrateCarbide
CoatingUncoated
Product TypeCombination Drill & Countersink

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
