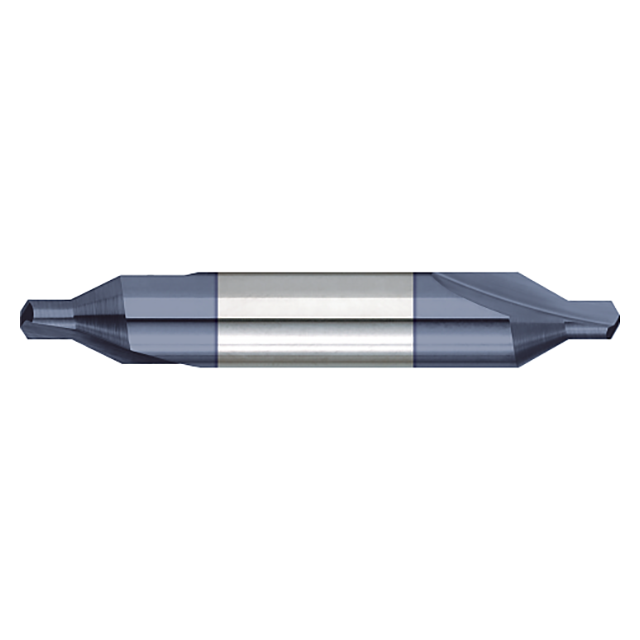

CNC ground in the USA from solid carbide, this offering of Titan USA Combined Drill & Countersinks feature tools that are double-ended, include a 60 Degree included angle.
Features:
- 60 Degree included angle
- Double-ended
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | CS36001 |
| Drill Diameter (Inch) | 0.0469" (3/64) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Included Angle (Degree) | 60 Degree |
| Drill Length (Inch) | 0.0469" (3/64) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Point Angle (Degree) | 118 Degree |
| Number of Flutes | 2 |
| Size | #1 |
| Substrate | Carbide |
| Coating | ALTIN |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Point Diameter (Inch):
3/64"
Drill Point Diameter (Decimal Inch):
0.0469"
Drill Point Diameter (mm):
1.19mm
Body Diameter (Inch):
1/8"
Body Diameter (Decimal Inch):
0.1250"
Body Diameter (mm):
3.18mm
Trade Size:
#1
Included Angle:
60 Degree
Material:
Carbide
Finish/Coating:
AlTiN
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
