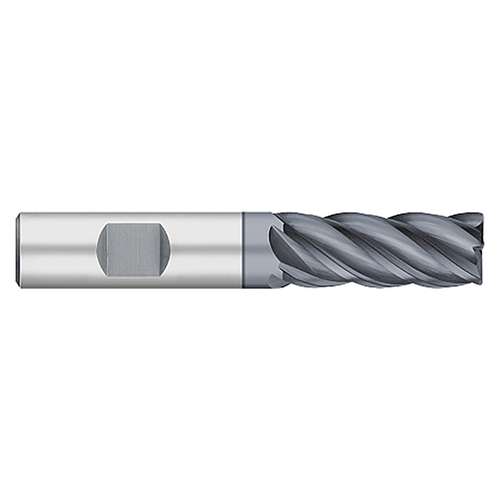

Experience efficient, chatter-free machining in roughing, profiling, and finishing applications with Titan USA's solid carbide line of VI-PRO End Mills.
Features:
- VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
- Corner radius for increased edge strength
- Delivers efficient, chatter free machining in light profiling, high efficiency milling, and finishing applications
- 5 flutes
- Large core and eccentric relief for improved tool life
- Post-polished AlCrO-MAX coating increases wear and high heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC26643 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1.2500" (1-1/4) |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Corner Radius (Inch) | 0.0300" |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 5 |
| Substrate | Carbide |
| Coating | AlCrO-MAX |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Cutter Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Helix Angle:
38 Degree
Number of Flutes:
5
Finish/Coating:
AlCrO-MAX
Material:
carbide
