Features:
- 4 flutes
- Solid carbide
- Corner radius for increased edge strength
- Large core and eccentric relief for improved tool life
- Post-polished AlCrO-MAX coating increases edge strength and wear resistance
- Engineered with chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
- Delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter
- VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
- CNC ground in the USA
Product Specifications

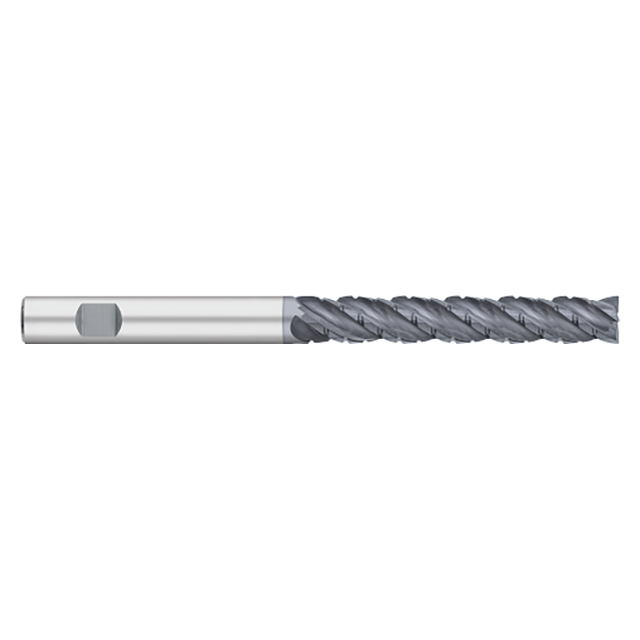

| Manufacturer Part Number | TC28220 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 3.0000" (3) |
| Overall Length (Inch) | 6.0000" (6) |
| Corner Radius (Inch) | 0.0600" |
| Number of Flutes | 4 |
| Coating | AlCrO-MAX |
| Substrate | Carbide |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
4
Corner Radius (Inch):
1/16
"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3.0000"
Length of Cut (mm):
76.20mm
Material:
Carbide
Finish/Coating:
AlCrO-MAX
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
