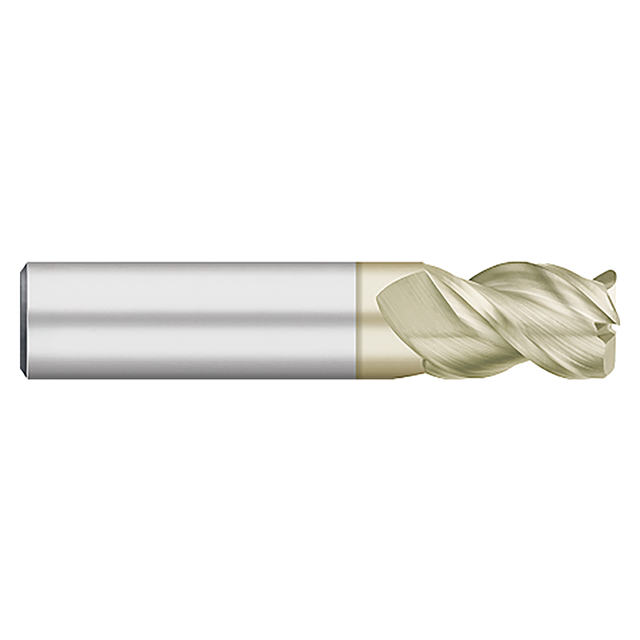

Optimized for high speed slotting and profiling in aluminum and non-ferrous materials. This 45 Degree helix End Mill is engineered for faster chip removal and a better finish.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Additional flute has 50% more cutting performance than certain 2 flute applications
- 3 flutes
- 45 Degree helix for faster chip removal and a better finish
- Center cutting
- ZrN coating offers increased speed rates and prolonged tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
Manufacturer Part Number | TC65503 |
Cutting Diameter (Inch) | 0.7500" (3/4) |
Shank Diameter (Inch) | 0.7500" (3/4) |
Overall Length (Inch) | 3.0000" (3) |
Length of Cut (Inch) | 1.0000" (1) |
Corner Radius (Inch) | 0.0600" |
Number of Flutes | 3 |
Coating | ZRN |
Substrate | Carbide |
Product Type | Corner Radius End Mill |
