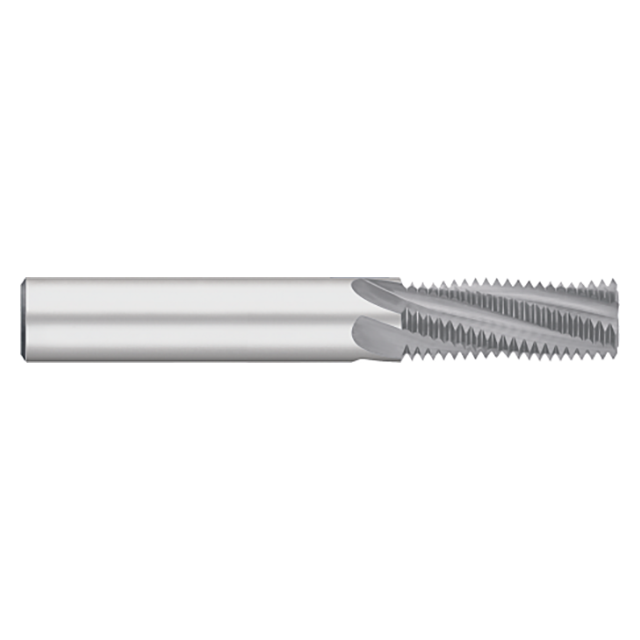

Engineered to cut internal and external Un threads, this solid carbide, fully stocked offering of Thread Mills-Multi-Form-Un Threads is optimized to mill right hand and left hand threads.
Features:
- Cuts internal and external Un threads
- Mills right hand and left hand threads
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC83925 |
| Cutter Diameter (Inch) | 0.3400" |
| Length of Cut (Inch) | 0.8750" (7/8) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Thread Size (Inch) | 7/16"-20 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
17/50"
Cutter Diameter (Decimal Inch):
0.3400"
Cutter Diameter (mm):
8.64mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
carbide
