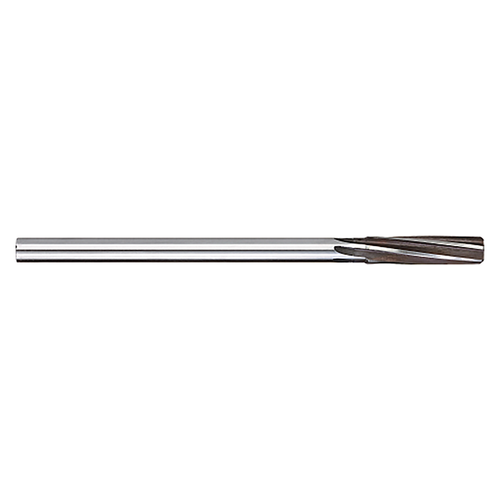

These fully stocked solid carbide Titan USA Reamers feature a 45 Degree chamfer angle and straight flutes, ideal for through and blind hole applications.
Features:
- Straight flute general purpose reamers for through and blind hole applications
- 45 Degree chamfer angle
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC87408 |
| Shank Diameter (mm) | 8.50mm |
| Reamer Diameter (mm) | 8.50 mm |
| Shank Diameter (mm) | |
| 54.000 mm | |
| Margin Length (mm) | 32.000 mm |
| Number of Flutes | 6 |
| Coating | Uncoated |
| Substrate | Carbide |
| Product Type | Chucking Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Reamer Diameter (Inch):
1/3"
Reamer Diameter (Decimal Inch):
0.3346"
Reamer Diameter (mm):
8.50mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89.00mm
Flute Length (Inch):
1-1/4"
Flute Length (Decimal Inch):
1.2598"
Flute Length (mm):
32.00mm
Number of Flutes:
6
Material:
Carbide
Finish/Coating:
Uncoated
interval quantity:
1
