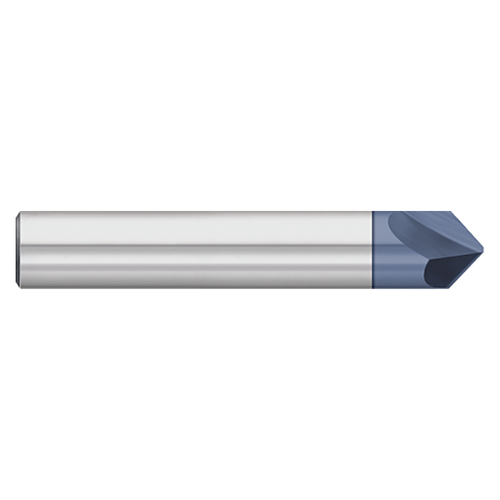

Name: Titan USA TC87666 | 0.3750" (3/8) Diameter x 0.3750" (3/8) Shank x 0.2730" LOC x 2.5000" (2-1/2) OAL 60 Degree Included Angle 2 Flute AlTiN Coated Carbide Chamfer Mill
Brand: Titan USA
SKU: 25230559
Price: 39.51 USD
Availability: InStock

Titan USA TC87666 | 0.3750" (3/8) Diameter x 0.3750" (3/8) Shank x 0.2730" LOC x 2.5000" (2-1/2) OAL 60 Degree Included Angle 2 Flute AlTiN Coated Carbide Chamfer Mill

$39.51

interval quantity:

SKU:

25230559

Weight:

0.13 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

2 flutes
Solid carbide
AlTiN coating offers increased wear and heat resistance
Flat tip (non-cutting) design for increased strength in chamfering and profiling applications
CNC ground in the USA

Product Specifications

Manufacturer Part Number	TC87666
Cutter Diameter (Inch)	0.3750" (3/8)
Shank Diameter (Inch)	0.3750" (3/8)
Length of Cut (Inch)	0.2730"
Overall Length (Inch)	2.5000" (2-1/2)
Tip (Inch)	0.0600"
Theoretical Tip Length (Inch)	0.0520"
Number of Flutes	2
Included Angle (Degree)	60 Degree
Angle per Side (Degree)	30 Degree
Coating	AlTiN
Substrate	Carbide
Product Type	Chamfer Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
