Features:
- Undersized, extended shank for increased clearance in deeper tapping applications
- Taps are on blanks that meet ANSI specifications
- AlTiN coating offers increased wear and heat resistance
- High speed steel
- CNC ground in the USA
Product Specifications

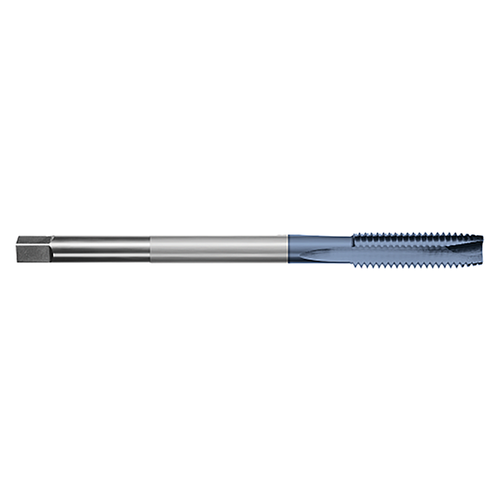

| Manufacturer Part Number | TT88901 |
| Shank Diameter (Inch) | 0.0970" |
| Length of Cut (Inch) | 0.6875" (11/16) |
| Overall Length (Inch) | 6.0000" (6) |
| Across Flat (Inch) | 0.0730" |
| End Length (Inch) | 0.1875" (3/16) |
| Thread Size (Inch) | #6-32 |
| Limit | H3 |
| Coating | AlTiN |
| Substrate | High Speed Steel |
| Type | SP/PT Plug |
| Thread Type | NC |
| Number of Flutes | 2 |
| Product Type | Spiral Point Tap |
