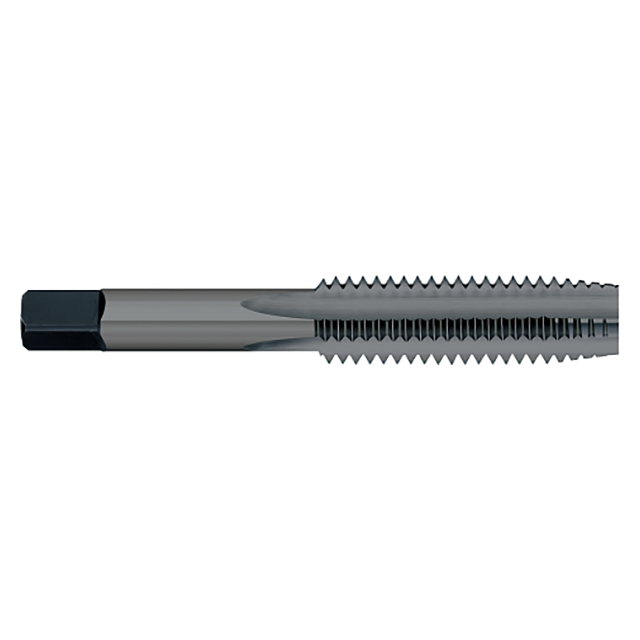

Titan USA TT90537NS | 9/16"-12 Thread x 0.4290" Shank x 1.6563" LOC x 3.5938" OAL 4 Flute Nitride & Steam Oxide Coated high speed steel Bottom Straight Flute Tap

$21.96
interval quantity:
1
SKU:
17982078
Weight:
0.14 LBS
Shipping:
Calculated at Checkout

Optimized for all types of gray, ductile, and malleable cast iron ferrous materials, this Titan USA offering of high speed steel hand taps are Nitride & Steam Oxide finished for increased tool life and lubrication in cast iron.

Features:

  • Optimized for all types of gray, ductile, and malleable cast iron ferrous materials.
  • Taps are on blanks that meet ANSI specifications
  • Nitride & Steam Oxide finish provides increased surface hardness and acts as a lubricant and also retains liquid lubricant at cutting edge, preventing chip welding and reducing friction
  • high speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT90537NS
Across Flat (Inch)0.3220"
Length of Cut (Inch)1.6563"
End Length (Inch)0.5000" (1/2)
Shank Diameter (Inch)0.4290"
Overall Length (Inch)3.5938"
Number of Flutes4
Thread Size (Inch)9/16"-12
LimitH3
TypeBottom
Substratehigh speed steel
CoatingNitride & Steam Oxide
Product TypeStraight Flute Tap
