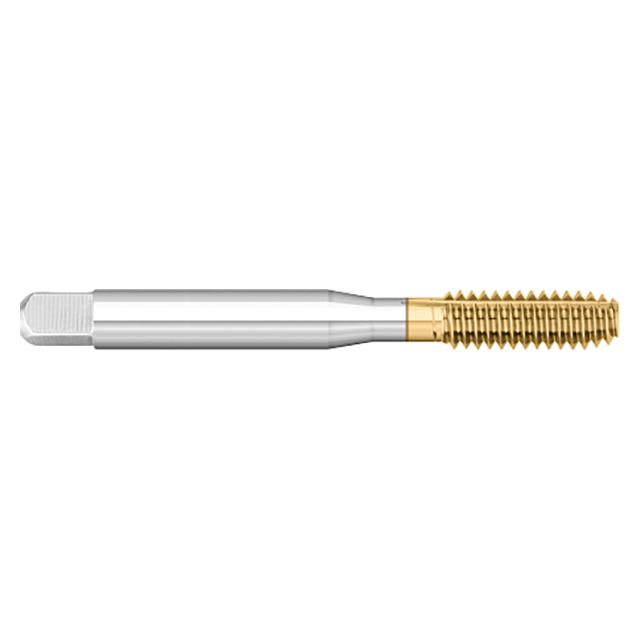

Features:
- Thread forming taps have no flutes or cutting edges and provide chipless tapping
- Lube grooves for lubrication and venting in blind holes
- Taps are on blanks that meet ANSI specifications
- Plug - 4.0 Thread Chamfer for through hole tapping
- Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
- TiN coating provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications
Manufacturer Part Number | TT92869 |
Shank Diameter (Inch) | 0.2200" |
Thread Length (Inch) | 0.9375" (15/16) |
Overall Length (Inch) | 2.3750" (2-3/8) |
Thread Size (Inch) | #12-28 |
Across Flat (Inch) | 0.1650" |
End Length (Inch) | 0.2813" |
Lube Grooves | 2 |
Limit | H4 |
Coating | TiN |
Substrate | High Speed Steel |
Type | Plug |
Product Type | Thread Forming Tap |
