Features:

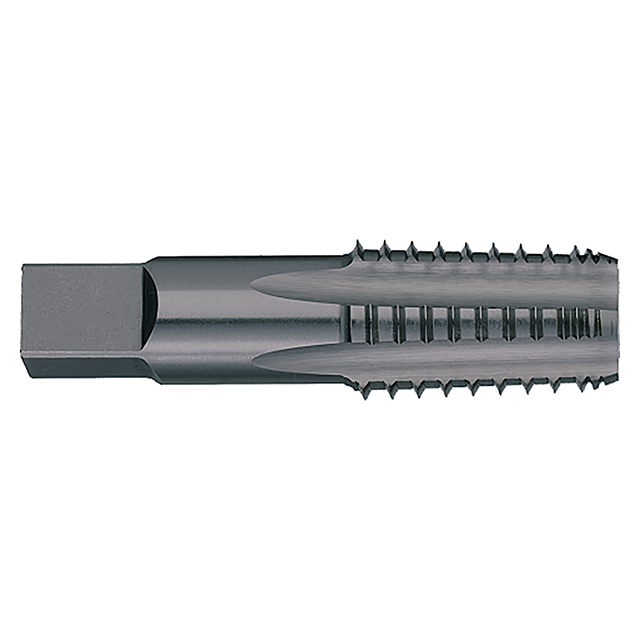

- General purpose NPT interrupted pipe tape
- Interrupted threads reduce friction and allow for better lubrication
- Taps are on blanks that meet ANSI specifications
- Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT93602S |
| Shank Diameter (Inch) | 0.4375" (7/16) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 2.1250" (2-1/8) |
| Across Flat (Inch) | 0.3280" (21/64) |
| End Length (Inch) | 0.3750" (3/8) |
| Thread Size (Inch) | 1/8"-27 |
| Coating | Steam Oxide |
| Substrate | High Speed Steel |
| Thread Type | NPT-Interrupted |
| Number of Flutes | 5 |
| Product Type | Interrupted Thread Pipe Tap |
