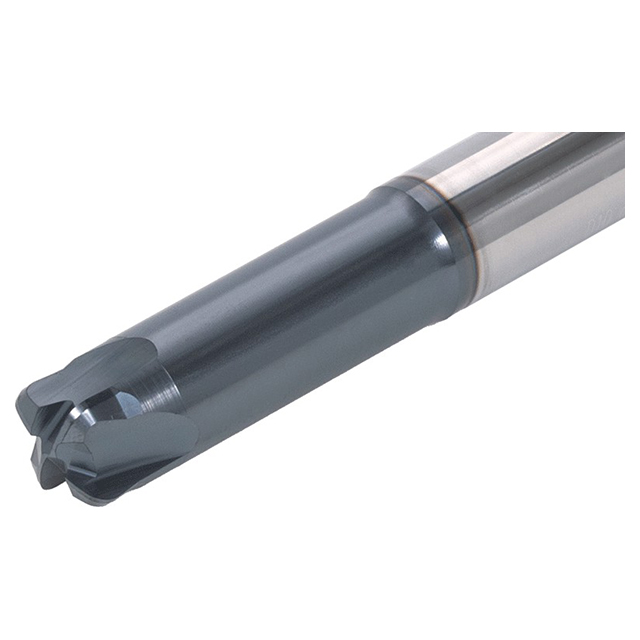

4 Flute high feed endmill.
Product Specifications
| # MFG | 5622471 |
| Connection Diameter Machine Side (mm) | 10mm |
| Corner Radius (mm) | 1.6mm |
| Cutting Diameter (mm) | 10mm |
| Maximum Depth of Cut (mm) | 0.5mm |
| Overall Length (mm) | 72mm |
| Head Length (mm) | 30mm |
| Neck Length (mm) | 30mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.5mm/tooth |
| Number of Flutes | 4 |
| Grade | AH750 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Cutting Edge Material | Carbide |
| Shank Type | Round |
| Applicable Material | Hard Materials |
| End Shape | Corner Radius |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Mill Diameter (Inch):
25/64"
Mill Diameter (Decimal Inch):
0.3900"
Mill Diameter (mm):
10.00mm
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
25/64"
Corner Radius (Decimal Inch):
0.3900"
Corner Radius (mm):
10.00mm
Length of Cut (Inch):
1/64"
Length of Cut (Decimal Inch):
0.0200"
Length of Cut (mm):
0.50mm
Shank Type:
Round
Material:
Carbide
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3900"
Shank Diameter (mm):
10.00mm
interval quantity:
1
