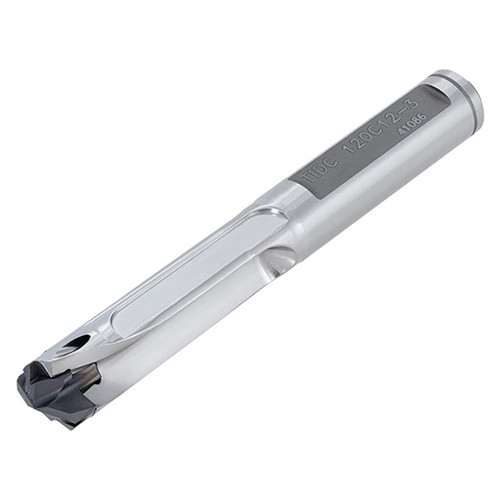

"DrillMeister" indexable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.626" |
| Cutting Diameter Minimum (Inch) | 0.591" |
| Flange Diameter (Inch) | 0.984" |
| Connection Diameter Machine Side (mm) | 8 mm |
| Overall Length (Inch) | 5.854" |
| Point Length (mm) | 1.12 mm |
| Shank Length (mm) | 45 mm |
| Usable Length (mm) | 45 mm |
| Insert Seat Size Code (SSC) | 7 |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.6260"
Minimum Cutting Diameter (Decimal Inch):
0.5910"
Flange Diameter (Decimal Inch):
0.9840"
Body Material:
Steel
Overall Length (Decimal Inch):
5.8540"
Point Length (Decimal Inch):
0.0890"
Shank Length (Decimal Inch):
1.9690"
Usable Length (Decimal Inch):
3.0610"
