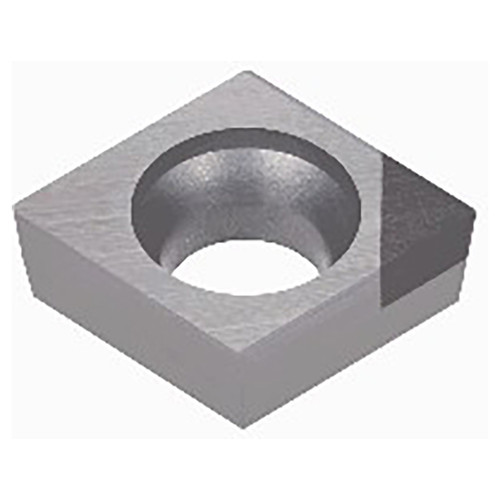

Tungaloy 6706848 | 1QP-CCGW 5.52.21 BX470 0.172" Circle Diameter x 0.070" Thickness x 0.016" Radius Polycrystalline Cubic Boron Nitride Indexable Turning Insert

$61.00 $56.12
(You save $4.88)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
11/64"
Inscribed Circle (Decimal Inch):
0.1720"
Inscribed Circle (mm):
4.37mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0700"
Thickness (mm):
1.78mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
1
SKU:
23154840
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Positive 7 degree relief angle, G class, 80 degree rhombic CBN insert.


Product Specifications
# MFG6706848
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.173"
Cutting Edge Effective Length (Inch)0.071"
Maximum Depth of Cut (Inch)0.0079"
Fixing Hole Diameter (Inch)0.091"
Inscribed Circle Diameter (Inch)0.172"
Insert Thickness (Inch)0.07"
Maximum Turning Feed (Inch)0.0039"/rev
Minimum Depth of Cut (Inch)0.0012"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialPCBN
GradeBX470
Tool TypeTurn Ultra Hard Inserts
Applicable MaterialHi Temp Alloys
Chip Breaker TypeFT-CBN
Major Clearance Angle7 Degree
Body MaterialCarbide
