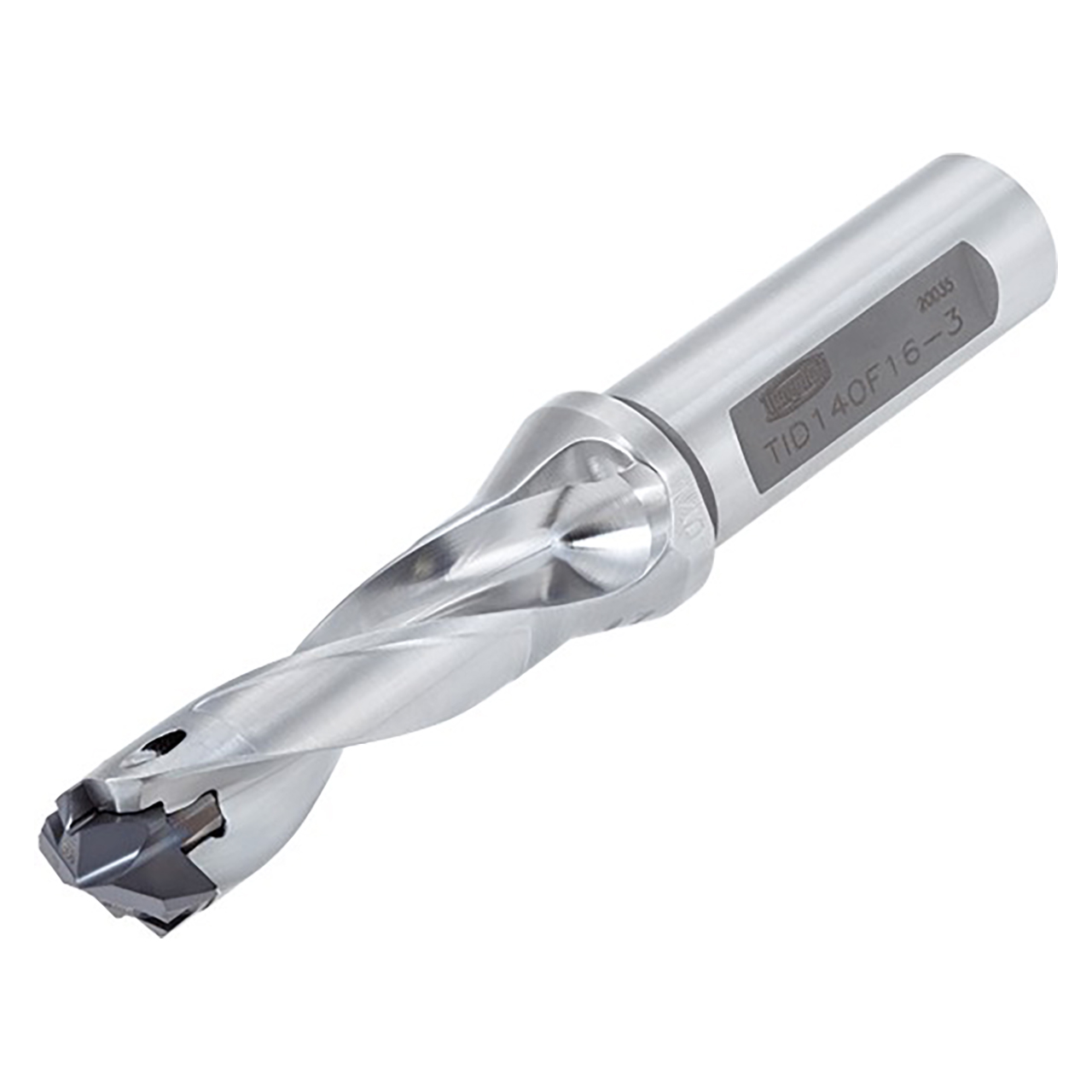

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 25.9 mm |
| Cutting Diameter Minimum (mm.) | 25 mm |
| Flange Diameter (mm) | 42 mm |
| Connection Diameter Machine Side (mm) | 12 mm |
| Overall Length (mm) | 174.30mm |
| Point Length (mm) | 1.37 mm |
| Shank Length (mm) | 45 mm |
| Usable Length (mm) | 16 mm |
| Insert Seat Size Code (SSC) | 9 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
1.0197"
Minimum Cutting Diameter (Decimal Inch):
0.9842"
Flange Diameter (Decimal Inch):
1.6540"
Body Material:
Steel
Overall Length (Decimal Inch):
6.8620"
Point Length (Decimal Inch):
0.1500"
Shank Length (Decimal Inch):
2.3620"
Usable Length (Decimal Inch):
3.1500"
interval quantity:
1
