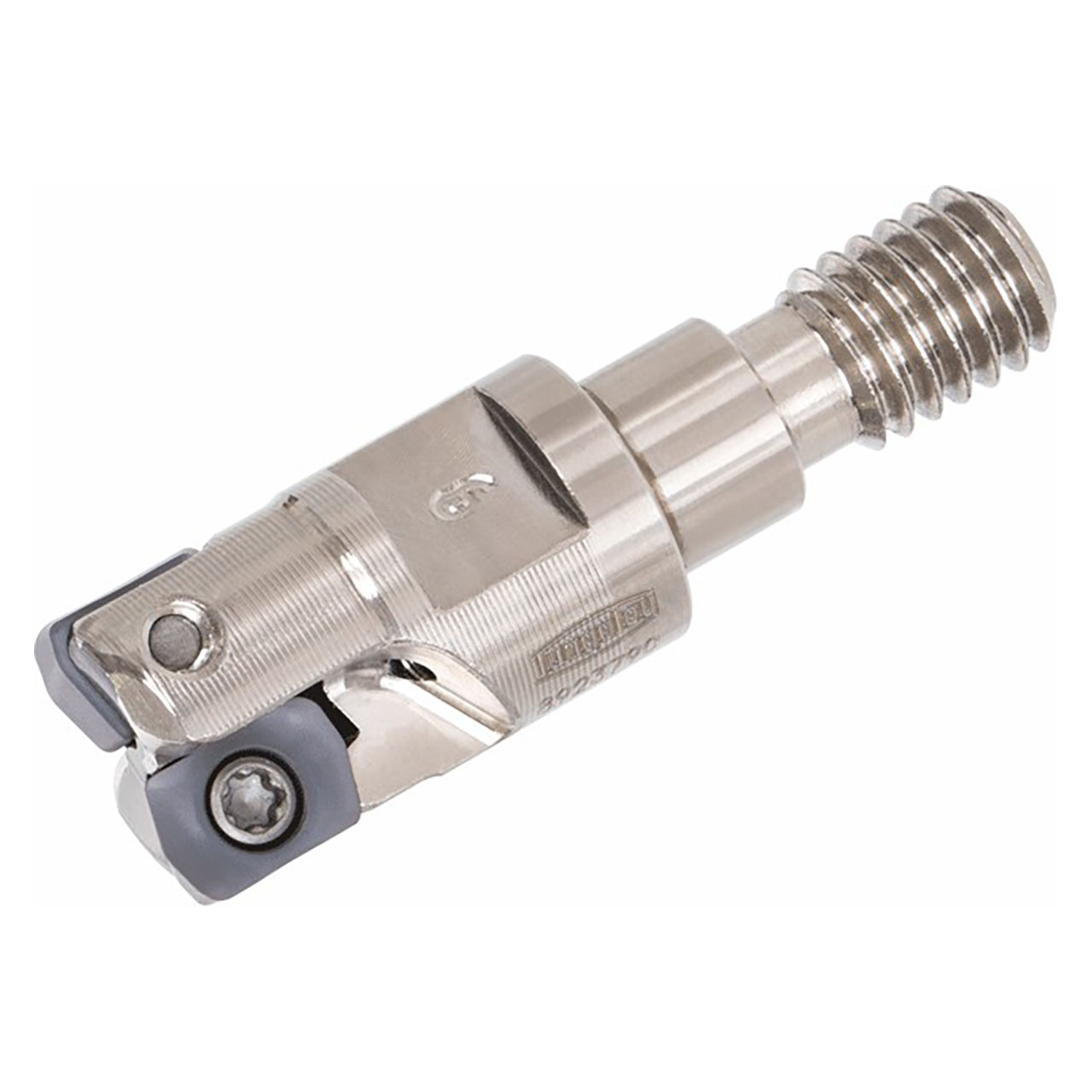

High feed milling cutters with LSMT inserts. Modular heads with TungFlex threaded adaptation.
Product Specifications
| # MFG | 6772874 |
| Connection Diameter Machine Side (mm) | 9.5mm |
| Connection Retention Knob Thread Size | M6 |
| Cutting Diameter (mm) | 4.29mm |
| Cutting Item Count | 1 |
| Maximum Cutting Diameter (mm) | 8mm |
| Maximum Depth of Cut (mm) | 0.5mm |
| Functional Length (mm) | 19mm |
| Overall Length (mm) | 33.5mm |
| Shank Height (mm) | 7mm |
| Tool Cutting Edge Angle (Degree) | 12 Degree |
| Body Material | Steel |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Tool Type | Fast Feed Endmill |
