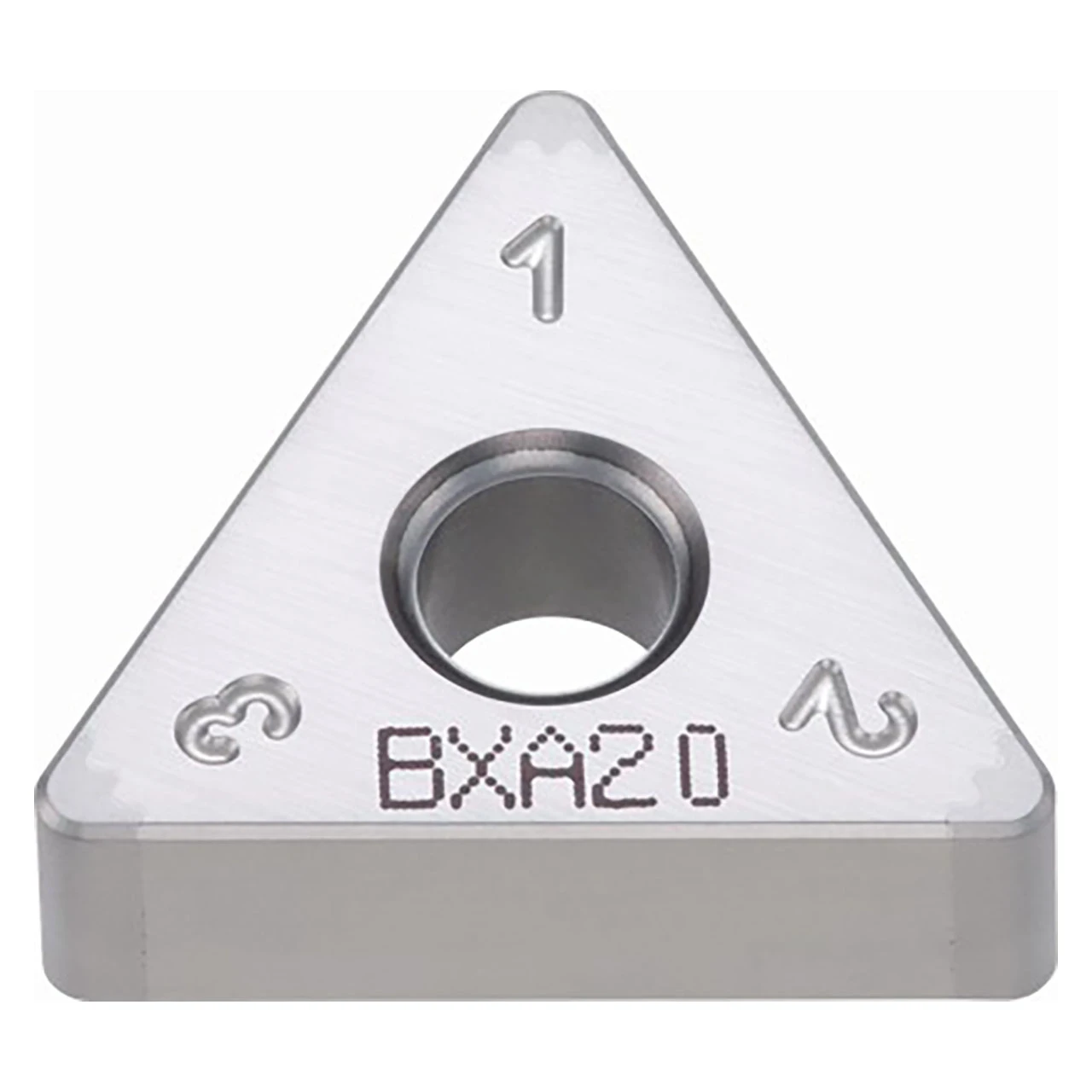

Tungaloy 6782063 | 6QS-TNGA 333 BXA20 3/8" Circle Diameter x 0.187" Thickness x 0.047" Radius Polycrystalline Cubic Boron Nitride Indexable Turning Insert

$186.30 $171.40
(You save $14.90)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0472"
Corner Radius (mm):
1.20mm
interval quantity:
1
SKU:
23131437
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Negative relief angle, G class, triangular CBN insert, applied "WavyJoint" brazing technology.


Product Specifications
# MFG6782063
Corner Radius (Inch)0.0472"
Cutting Edge Length (Inch)0.65"
Cutting Edge Effective Length (Inch)0.071"
Maximum Depth of Cut (Inch)0.0315"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.002"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialPCBN
GradeBXA20
Tool TypeTurn Negative Inserts
Applicable MaterialHard Materials
Chip Breaker TypeFT-Wavy
Body MaterialCarbide
