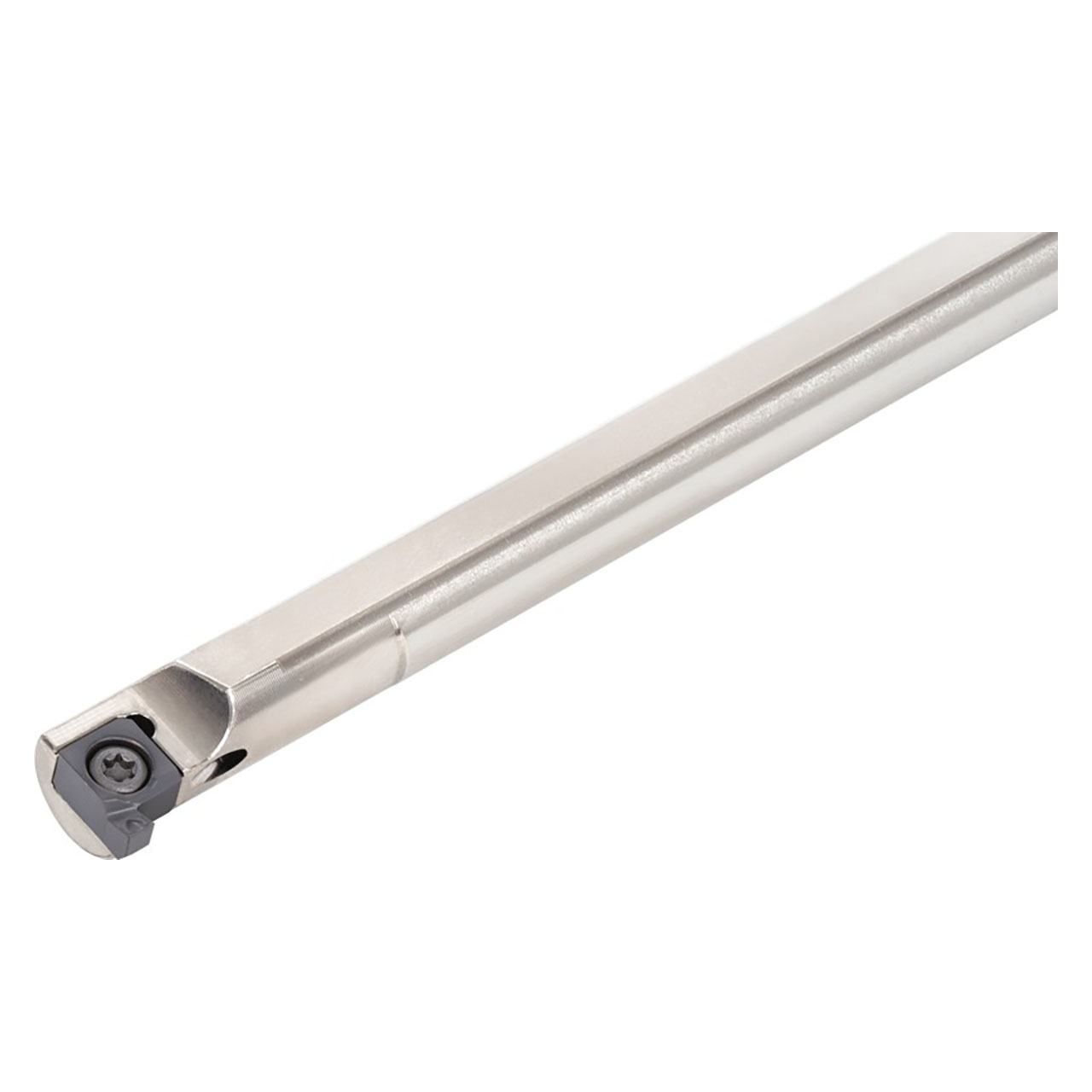

Toolholder for internal grooving.
Product Specifications
| Manufacturer Part Number | 6789268 |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Cutting Width Maximum (mm) | 3.50mm |
| Cutting Width Minimum (mm) | 1.50mm |
| Functional Length (mm) | 180.00mm |
| Functional Width (mm) | 11.6mm |
| Head Length (mm) | 20.00mm |
| Minimum Bore Diameter (mm) | 20.00mm |
| Shank Height (mm) | 15.00mm |
| Shank Width (mm) | 15.50mm |
| Cutting Direction | Right Hand |
| Application | Internal Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Groove Width (Inch):
1/16"
Minimum Groove Width (Decimal Inch):
0.0600"
Minimum Groove Width (mm):
1.50mm
Maximum Groove Width (Inch):
9/64"
Maximum Groove Width (Decimal Inch):
0.1400"
Maximum Groove Width (mm):
3.50mm
Toolholder Type:
Internal Grooving
Shank Height (Inch):
19/32"
Shank Height (Decimal Inch):
0.5900"
Shank Height (mm):
15.00mm
interval quantity:
1
