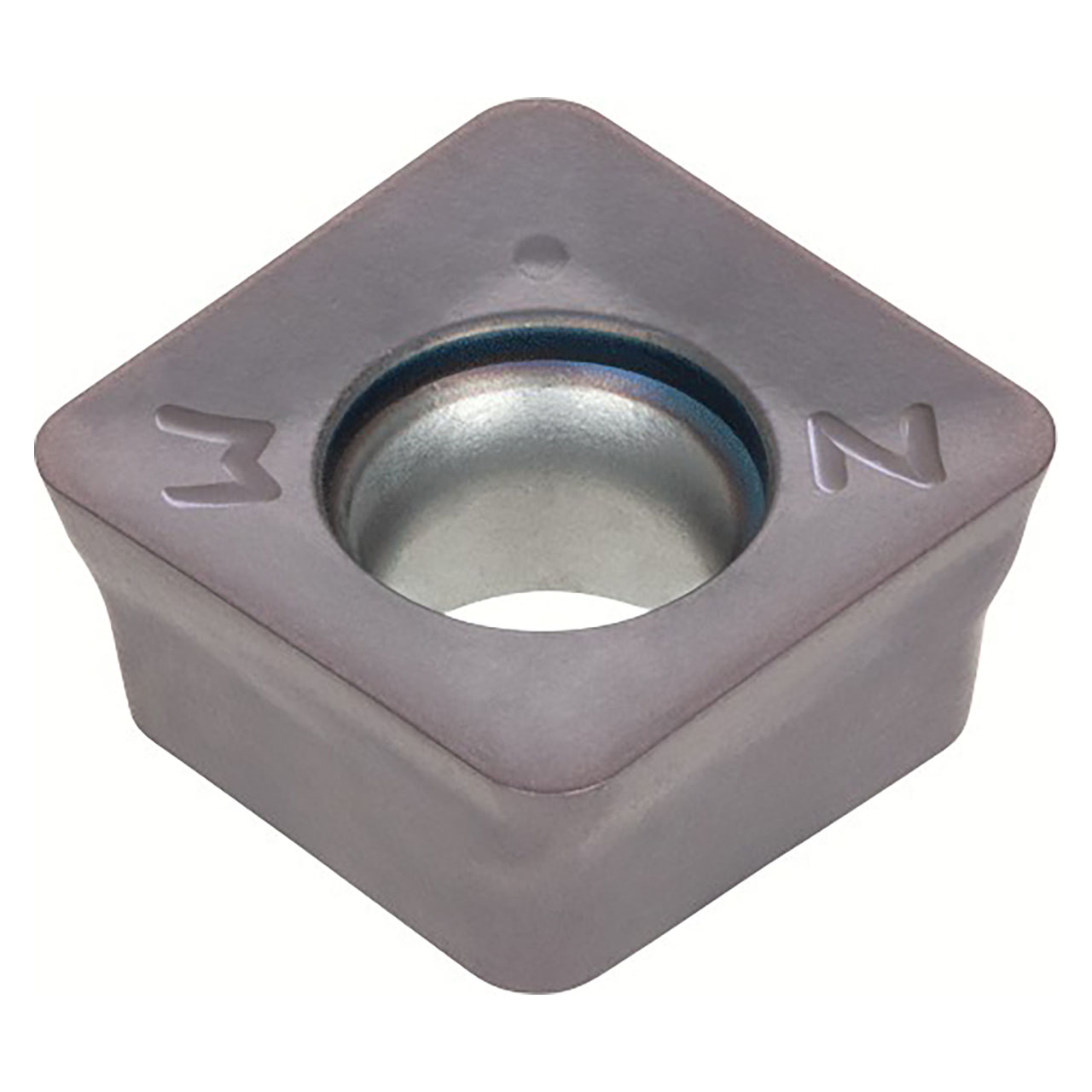

Tungaloy 6793096 | SWMT0904ZER-MM AH3225 0.157" Thickness x 0.059" Depth of Cut Carbide Milling Insert

$19.65 $16.31
(You save $3.34)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Width (Inch):
21/64"
Width (Decimal Inch):
0.3390"
Width (mm):
8.20mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
interval quantity:
10
SKU:
23154880
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Single-sided square insert with MM chipbreaker for general purpose use.


Product Specifications
# MFG6793096
Cutting Edge Effective Length (Inch)0.339"
Depth of Cut Maximum (Inch)0.059"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.339"
Maximum Feed per Tooth0.059"/tooth
Minimum Feed per Tooth0.0039"/tooth
Number of Cutting Edges4
ApplicationFace Milling, High Feed Milling
Body MaterialCarbide
GradeAH3225
Applicable MaterialSteel, Stainless Steel
