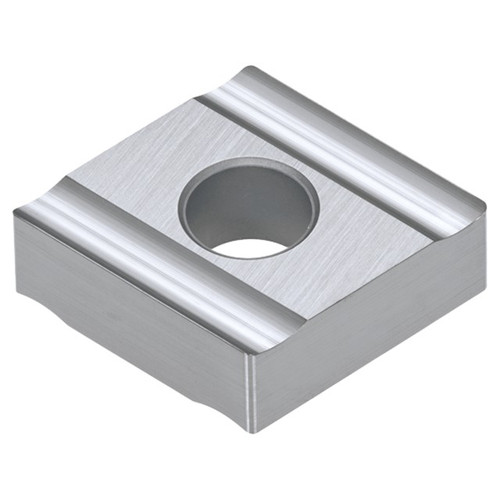

Tungaloy 6801861 | CNGG 431 L-P GH110 1/2" Circle Diameter x 0.187" Thickness x 0.016" Radius TiCNO Coated Carbide Indexable Turning Insert

$34.30 $24.01
(You save $10.29)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23133106
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, G class, 80 degree rhombic insert, for medium cutting.


Product Specifications
Manufacturer Part Number6801861
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.508"
Maximum Depth of Cut (Inch)0.1575"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0197"/rev
Minimum Depth of Cut (Inch)0.0197"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiCNO
Cutting Edge MaterialCarbide
GradeGH110
Tool TypeTurn Inserts AL, HTA Geometric
Applicable MaterialCast Iron, Non Ferrous Metals
Chip Breaker TypeP
Body MaterialCarbide
