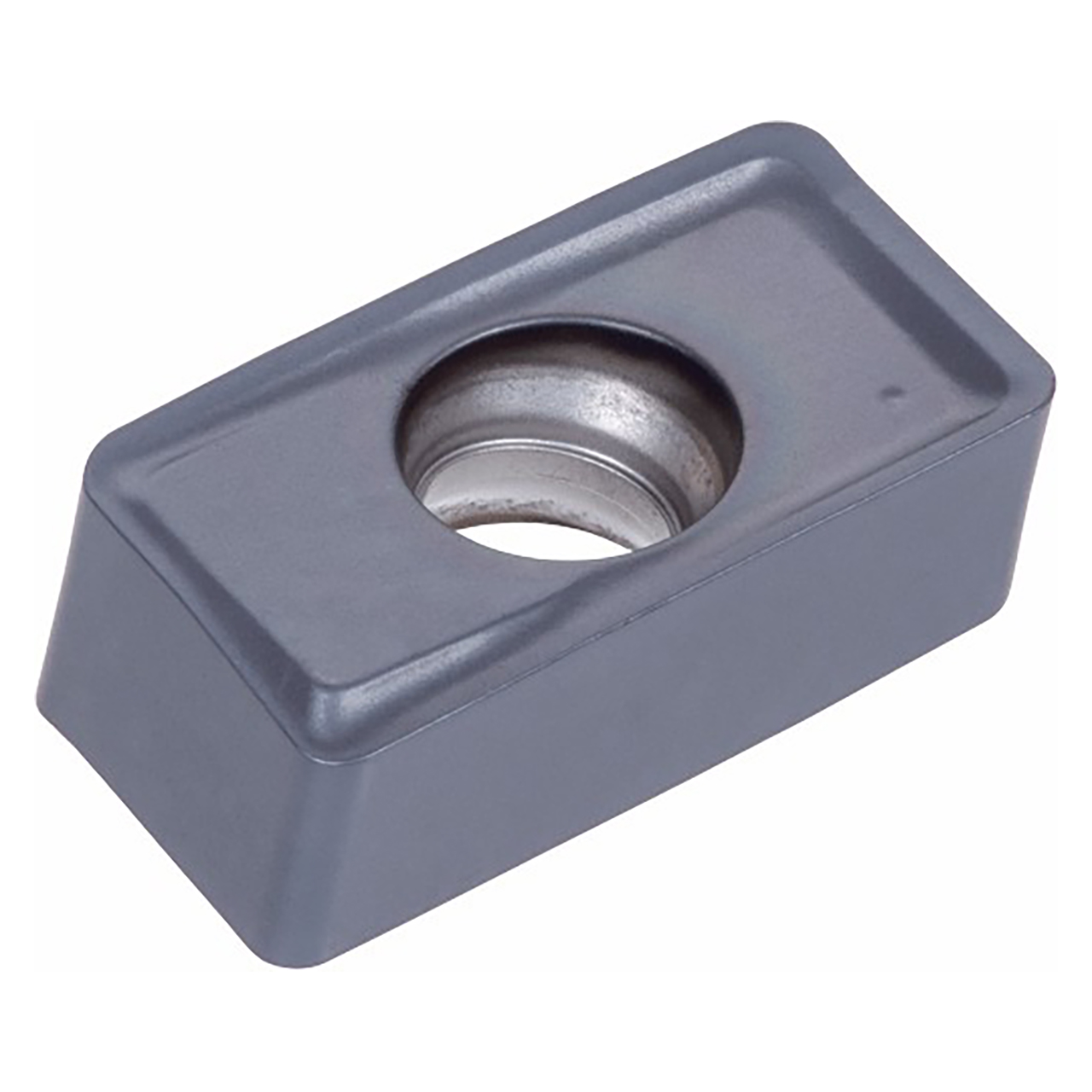

Tungaloy 6815755 | LXMU120408PER-MM AH8015 0.165" Thickness x 0.433" Depth of Cut TiAlN Coated Carbide Milling Insert

$26.28 $18.40
(You save $7.88)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH8015
Finish/Coating:
TiAlN
Width (Inch):
9/32"
Width (Decimal Inch):
0.2800"
Width (mm):
7.11mm
Thickness (Inch):
11/64"
Thickness (Decimal Inch):
0.1650"
Thickness (mm):
4.19mm
interval quantity:
10
SKU:
23156554
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Double-sided insert with 2 edges and MM chipbreaker.


Product Specifications
# MFG6815755
Cutting Edge Effective Length (Inch)0.48"
Depth of Cut Maximum (Inch)0.433"
Insert Thickness (Inch)0.165"
Insert Width (Inch)0.28"
Maximum Feed per Tooth0.0118"/tooth
Minimum Feed per Tooth0.0014"/tooth
Number of Cutting Edges2
Wiper Edge Length0.031"
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH8015
Cutting Edge MaterialCarbide
Applicable MaterialStainless Steel, Hard Materials, Hi Temp Alloys
