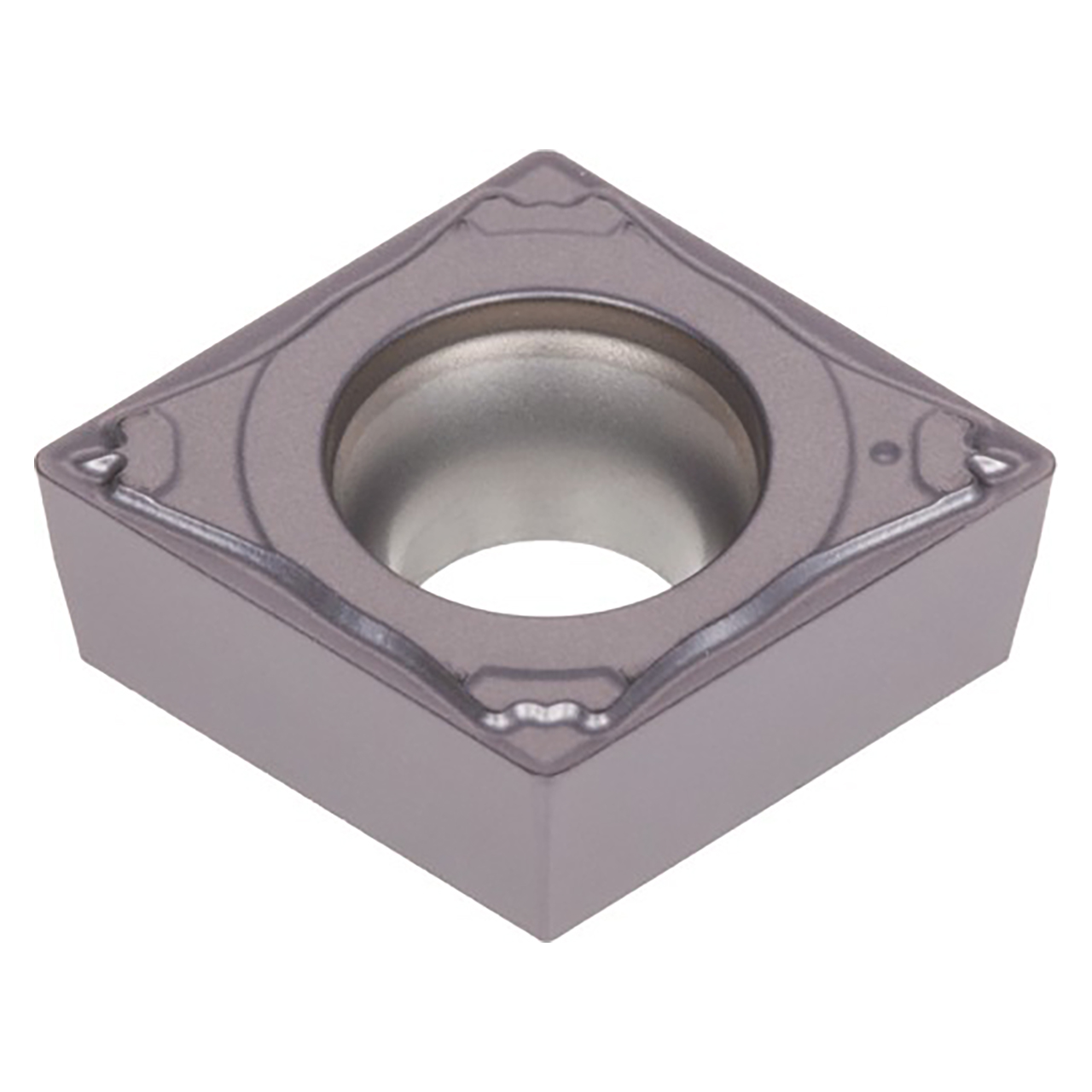

Tungaloy 6818329 | CCMT 32.51 PF AH110 3/8" Circle Diameter x 0.156" Thickness x 0.016" Radius TiAlN Coated Carbide Indexable Turning Insert

$17.85 $11.60
(You save $6.25)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Corner Radius (Decimal Inch):
0.0160"
Thickness (mm):
3.96mm
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23018638
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 80 degree rhombic insert, for finishing.


Product Specifications
# MFG6818329
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.059"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0098"/rev
Minimum Depth of Cut (Inch)0.0079"
Minimum Turning Feed (Inch)0.0011"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH110
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker TypePF
Major Clearance Angle7 Degree
Body MaterialCarbide
