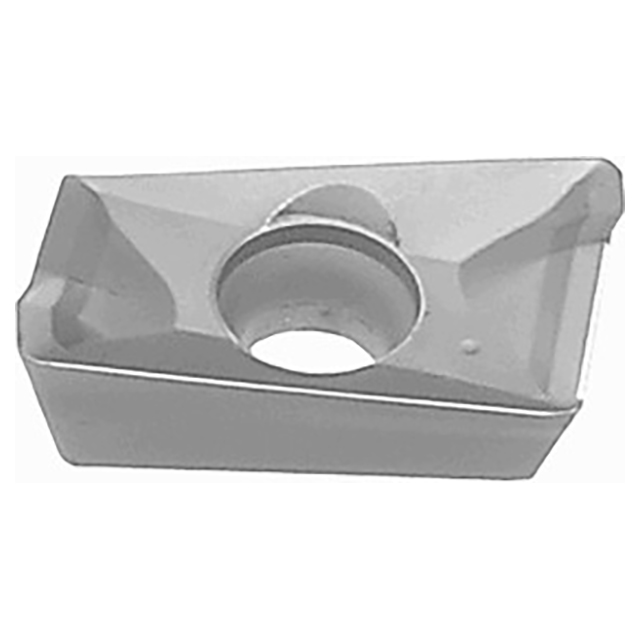

High performance insert with MJ chipbreaker for general purpose.
Product Specifications
| # MFG | 6822091 |
| Cutting Edge Effective Length (mm) | 16.9mm |
| Corner Radius (mm) | 1.6mm |
| Depth of Cut Maximum (mm) | 16mm |
| Insert Length (mm) | 18.5mm |
| Insert Thickness (mm) | 5.6mm |
| Insert Width (mm) | 9.8mm |
| Number of Cutting Edges | 2 |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | NS740 |
| Cutting Edge Material | Cermet |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
NS740
Width (Inch):
25/64"
Width (Decimal Inch):
0.3858"
Width (mm):
9.80mm
Length (Inch):
47/64"
Length (Decimal Inch):
0.7283"
Length (mm):
18.50mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2204"
Thickness (mm):
5.60mm
interval quantity:
10
