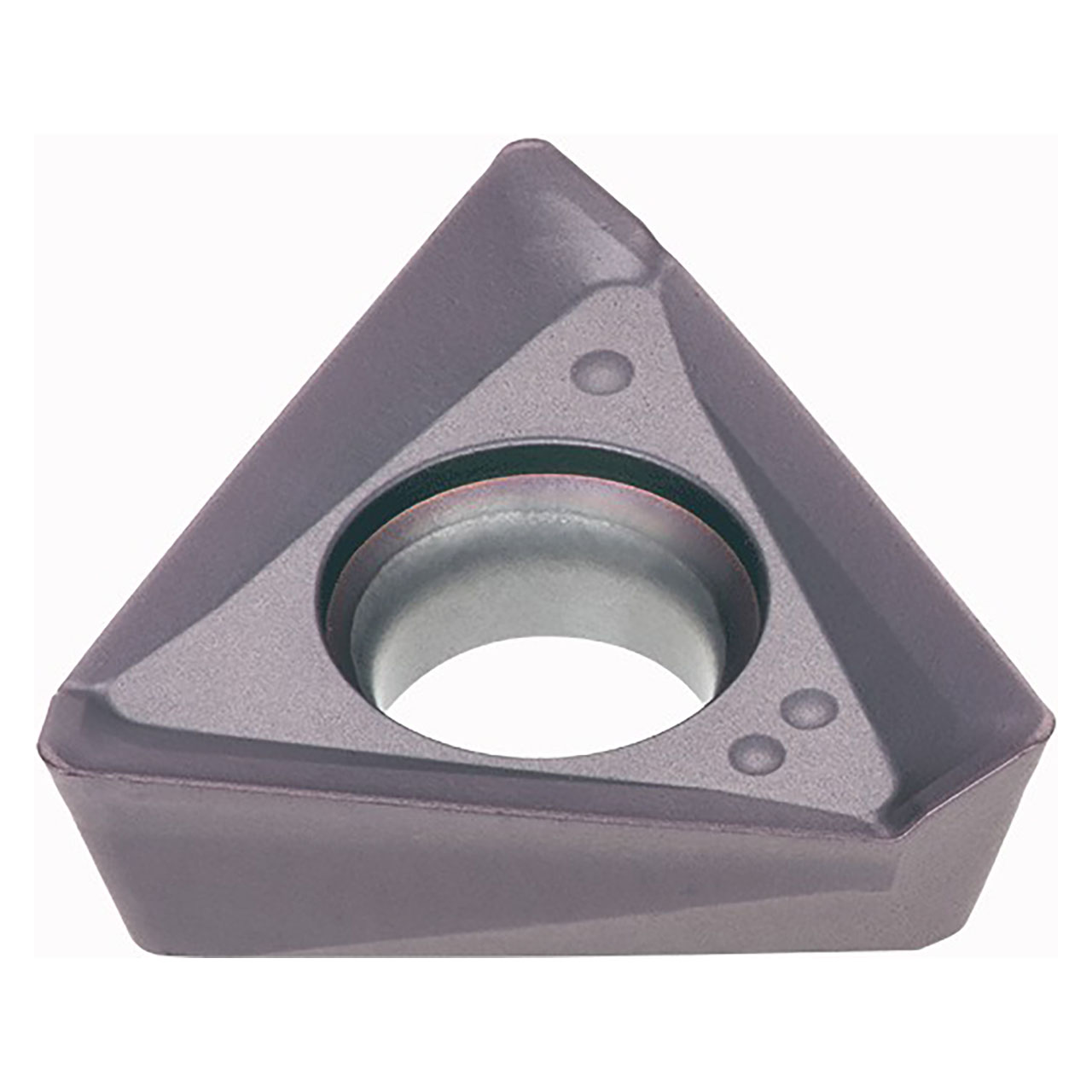

Tungaloy 6823997 | TOMT150620PDER-MJ AH3225 1/2" Diameter x 0.236" Thickness x 0.079" Radius Carbide Milling Insert

$23.30 $19.34
(You save $3.96)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
15/64"
Thickness (Decimal Inch):
0.2360"
Thickness (mm):
5.99mm
interval quantity:
10
SKU:
23156651
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

High performance inserts with MJ chipbreaker for general purpose.


Product Specifications
# MFG6823997
Cutting Edge Effective Length (Inch)0.618"
Corner Radius (Inch)0.0787"
Depth of Cut Maximum (Inch)0.591"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.236"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.003"/tooth
Number of Cutting Edges3
Wiper Edge Length0.028"
ApplicationShoulder Milling
Body MaterialCarbide
GradeAH3225
Applicable MaterialSteel, Stainless Steel
