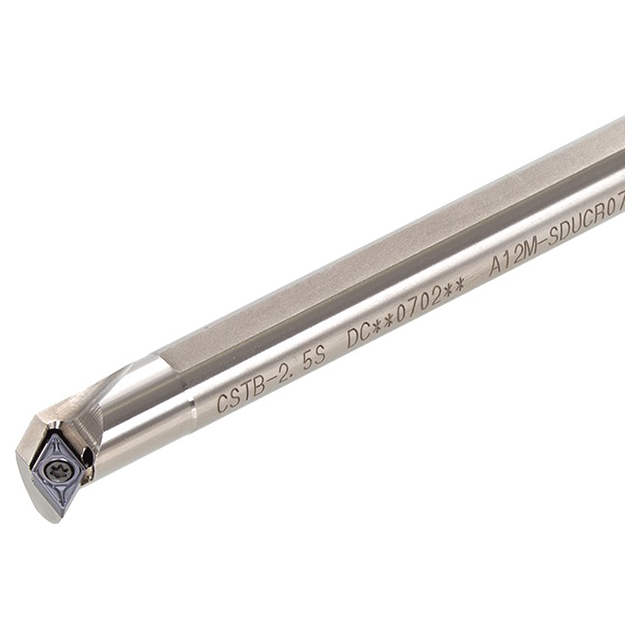

Screw-on boring bars, for position 55 degree rhombic insert with 7 degree clearance.
Product Specifications
| # MFG | 6850459 |
| Connection Diameter Machine Side (Inch) | 5/8" |
| Functional Length (Inch) | 7" |
| Functional Width (Inch) | 0.531" |
| Head Length (Inch) | 1-1/4" |
| Minimum Bore Diameter (Inch) | 7/8" |
| Shank Height (Inch) | 0.6" |
| Body Material | Steel |
| Application | For 55 Degree Rhombic Insert , For Miniature Machining |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | 0 Degree |
| Rake Angle Radial (Degree) | -4 Degree |
