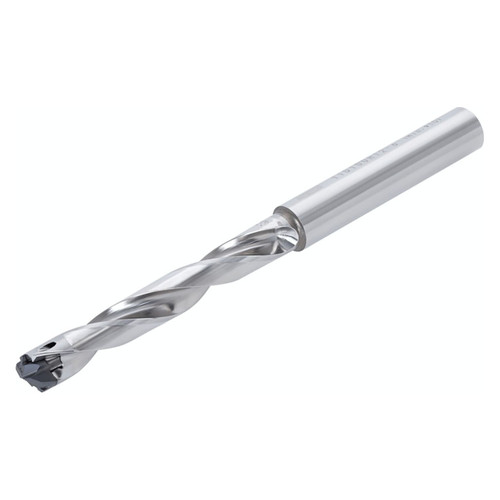

"AddMeisterDrill" exchangeable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 10.9 mm |
| Cutting Diameter Minimum (Inch) | 10.5 mm |
| Cutting Diameter Minimum (mm.) | 10.5 mm |
| Flange Diameter (mm) | 20 mm |
| Connection Diameter Machine Side (mm) | 6 mm |
| Overall Length (mm) | 148.05mm |
| Point Length (mm) | 0.81 mm |
| Shank Length (mm) | 35 mm |
| Usable Length (mm) | 28.3 mm |
| Insert Seat Size Code (SSC) | 5.5 |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.4291"
Minimum Cutting Diameter (Decimal Inch):
0.4134"
Flange Diameter (Decimal Inch):
0.7870"
Body Material:
Steel
Overall Length (Decimal Inch):
5.8290"
Point Length (Decimal Inch):
0.0610"
Shank Length (Decimal Inch):
1.8900"
Usable Length (Decimal Inch):
3.3860"
interval quantity:
1
