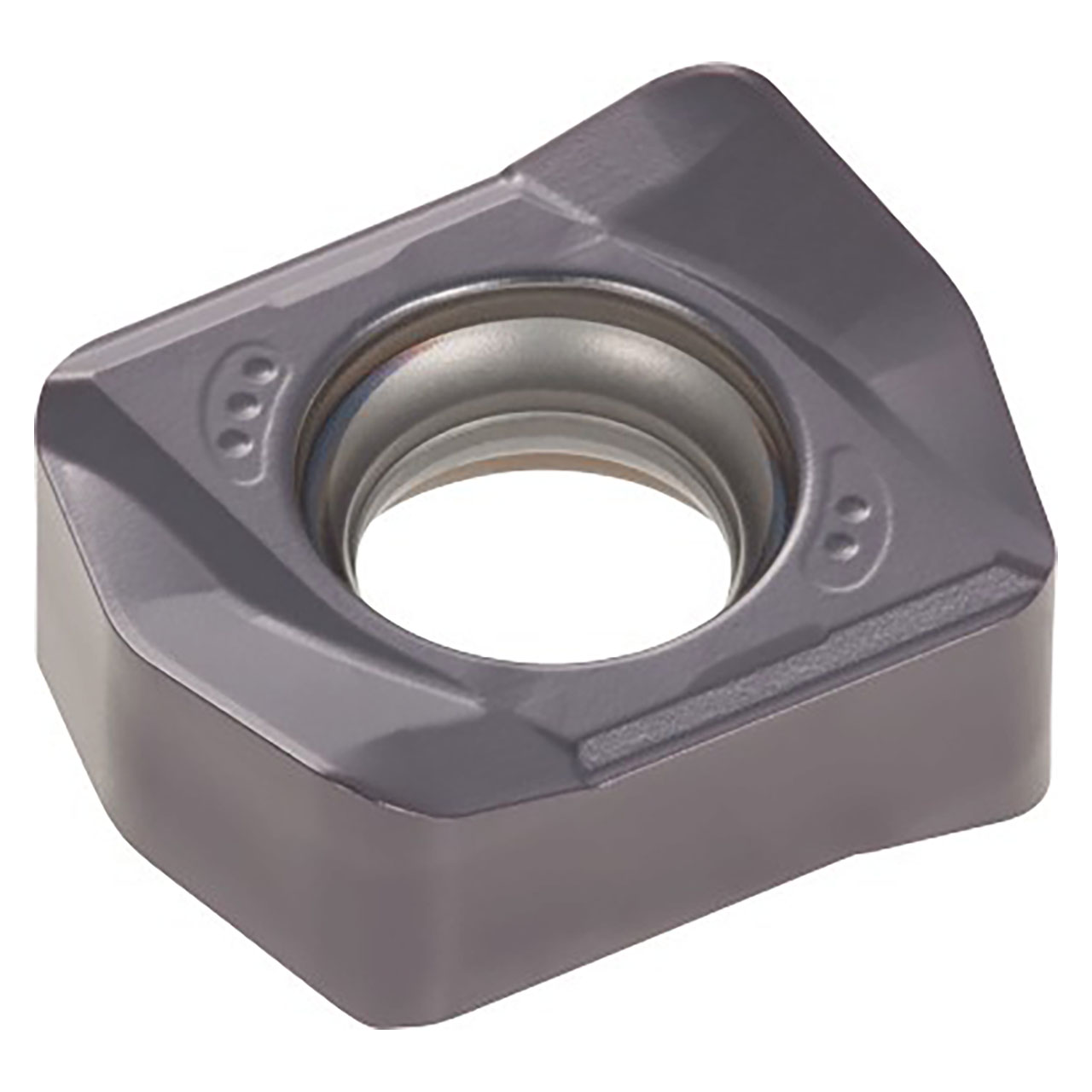

Double sided insert with 4 edges and MJ chipbreaker.
Product Specifications
| # MFG | 6869923 |
| Cutting Edge Effective Length (Inch) | 0.236" |
| Corner Radius (Inch) | 0.0787" |
| Depth of Cut Maximum (Inch) | 0.059" |
| Insert Thickness (Inch) | 0.276" |
| Insert Width (Inch) | 0.472" |
| Maximum Feed per Tooth | 0.059"/tooth |
| Minimum Feed per Tooth | 0.0197"/tooth |
| Number of Cutting Edges | 4 |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH130 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH130
Finish/Coating:
TiAlN
Width (Inch):
15/32"
Width (Decimal Inch):
0.4720"
Width (mm):
11.99mm
Thickness (Inch):
9/32"
Thickness (Decimal Inch):
0.2760"
Thickness (mm):
7.01mm
interval quantity:
10
