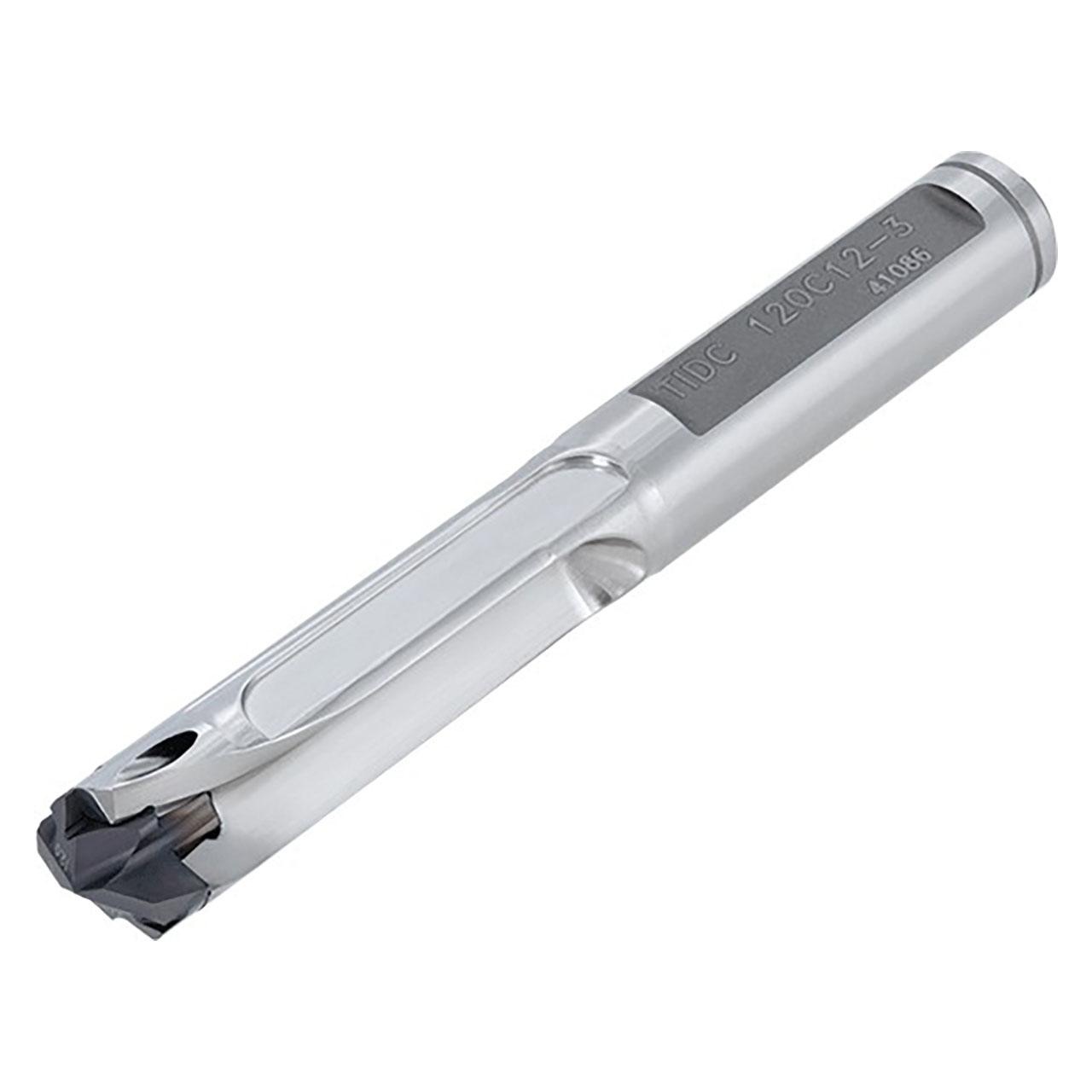

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.4094" |
| Cutting Diameter Minimum (Inch) | 0.3937" |
| Connection Diameter Machine Side (Inch) | 1" |
| Overall Length (Inch) | 3.390" |
| Point Length (Inch) | 0.113" |
| Shank Length (Inch)) | 2.205" |
| Shank Length (mm) | 6.12" |
| Insert Seat Size Code (SSC) | 19 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.4094"
Minimum Cutting Diameter (Decimal Inch):
0.3937"
Body Material:
Steel
Overall Length (Decimal Inch):
3.3900"
Point Length (Decimal Inch):
0.0580"
Shank Length (Decimal Inch):
1.6140"
Usable Length (Decimal Inch):
1.2600"
interval quantity:
1
