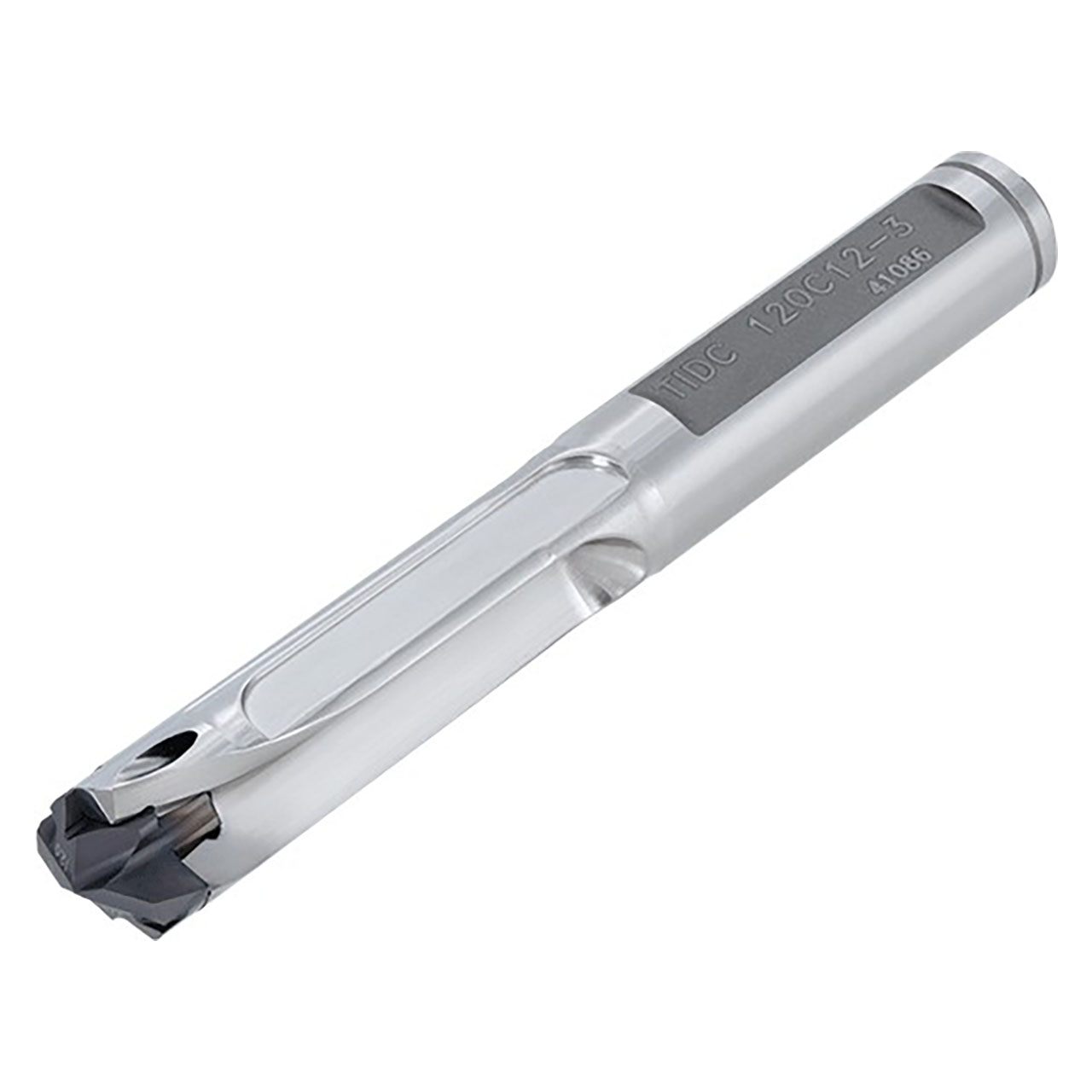

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.7835" |
| Cutting Diameter Minimum (Inch) | 0.748" |
| Connection Diameter Machine Side (Inch) | 5/8" |
| Overall Length (Inch) | 5.213" |
| Point Length (Inch) | 0.081" |
| Shank Length (Inch)) | 1.89" |
| Shank Length (mm) | 4.349" |
| Insert Seat Size Code (SSC) | 13 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.7835"
Minimum Cutting Diameter (Decimal Inch):
0.7480"
Body Material:
Steel
Overall Length (Decimal Inch):
5.2130"
Point Length (Decimal Inch):
0.1130"
Shank Length (Decimal Inch):
2.1260"
Usable Length (Decimal Inch):
2.4020"
interval quantity:
1
