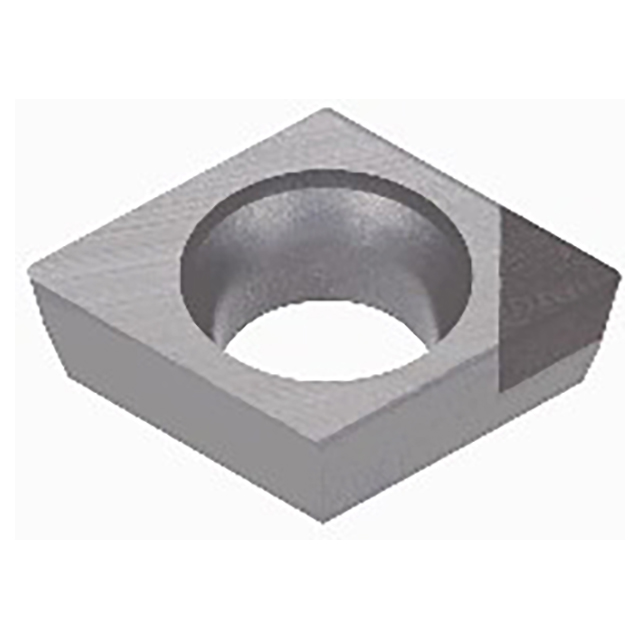

Tungaloy 6888195 | 1QP-EPGW 4.51.81 BX310 0.141" Circle Diameter x 0.055" Thickness x 0.016" Radius Polycrystalline Cubic Boron Nitride Indexable Turning Insert

$56.70 $48.20
(You save $8.50)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
9/64"
Inscribed Circle (Decimal Inch):
0.1410"
Inscribed Circle (mm):
3.58mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0550"
Thickness (mm):
1.40mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
1
SKU:
23017279
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, G class, 75 degree rhombic CBN insert.


Product Specifications
# MFG6888195
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.146"
Cutting Edge Effective Length (Inch)0.051"
Maximum Depth of Cut (Inch)0.0079"
Fixing Hole Diameter (Inch)0.075"
Inscribed Circle Diameter (Inch)0.141"
Insert Thickness (Inch)0.055"
Maximum Turning Feed (Inch)0.0039"/rev
Minimum Depth of Cut (Inch)0.0012"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialPCBN
GradeBX310
Tool TypeTurn Ultra Hard Inserts
Applicable MaterialHard Materials
Chip Breaker TypeFT-CBN
Major Clearance Angle11 Degree
Body MaterialCarbide
