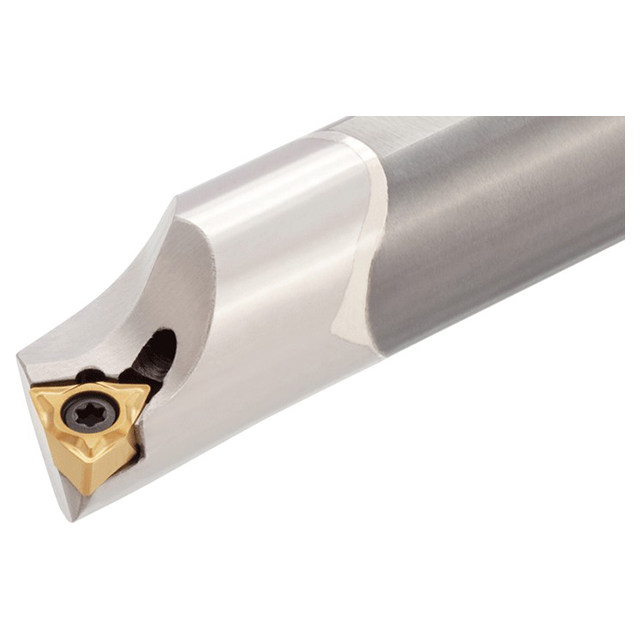

Screw-on boring bars for trigon insert with 6 edges.
Product Specifications
| # MFG | 6990700 |
| Connection Diameter Machine Side (Inch) | 5/8" |
| Functional Length (Inch) | 7" |
| Functional Width (Inch) | 0.531" |
| Head Length (Inch) | 1-1/4" |
| Minimum Bore Diameter (Inch) | 7/8" |
| Shank Height (Inch) | 0.6" |
| Body Material | Steel |
| Application | For 80 Degree Trigon Insert, For Miniature Machining |
| Tool Type | Toolholders- For Boring & Internal Profiling |
| Rake Angle Axial (Degree) | -10 Degree |
| Rake Angle Radial (Degree) | -8 Degree |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Bore Diameter (Inch):
7/8"
Body Material:
Steel
Head Length (Inch):
1-1/4"
Shank Height (Decimal Inch):
0.6000"
interval quantity:
1
