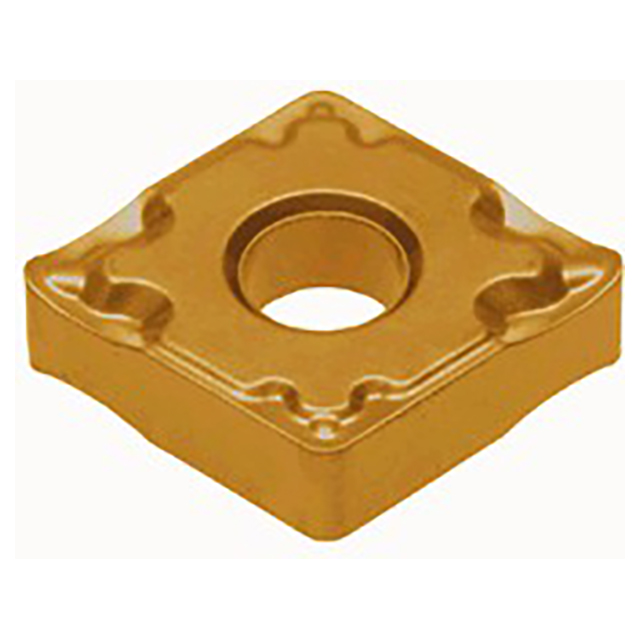

Tungaloy 6998133 | CNMG 322 CB NS9530 3/8" Circle Diameter x 1/8" Thickness x 0.031" Radius Cermet Indexable Turning Insert

$9.70 $6.79
(You save $2.91)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
SKU:
23139588
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, M class, 80 degree rhombic insert, double-sided chipbreaker for boring.


Product Specifications
# MFG6998133
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.0984"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0098"/rev
Minimum Depth of Cut (Inch)0.0078"
Minimum Turning Feed (Inch)0.0039"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker TypeCB
Body MaterialCarbide
