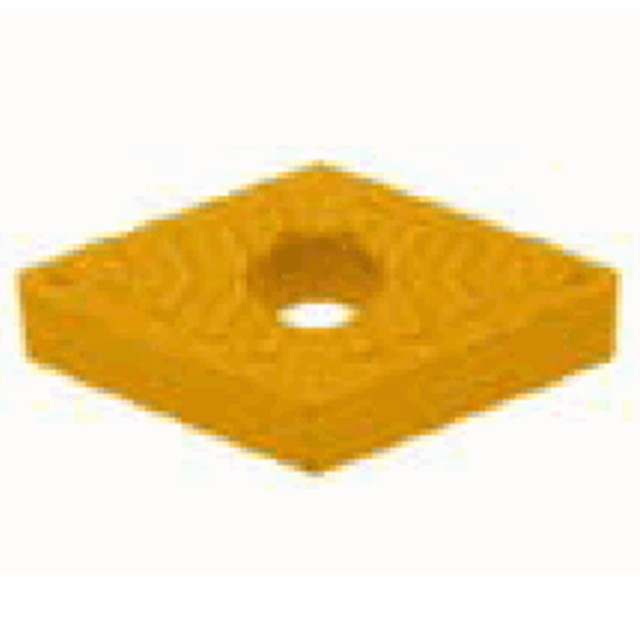

Tungaloy 6998272 | DNMG 432-27 NS9530 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius Cermet Indexable Turning Insert

$17.65 $12.36
(You save $5.29)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23020886
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, 55 degree rhombic insert, for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6998272
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.61"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0019"
Minimum Turning Feed (Inch)0.0079"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type27
Body MaterialCarbide
