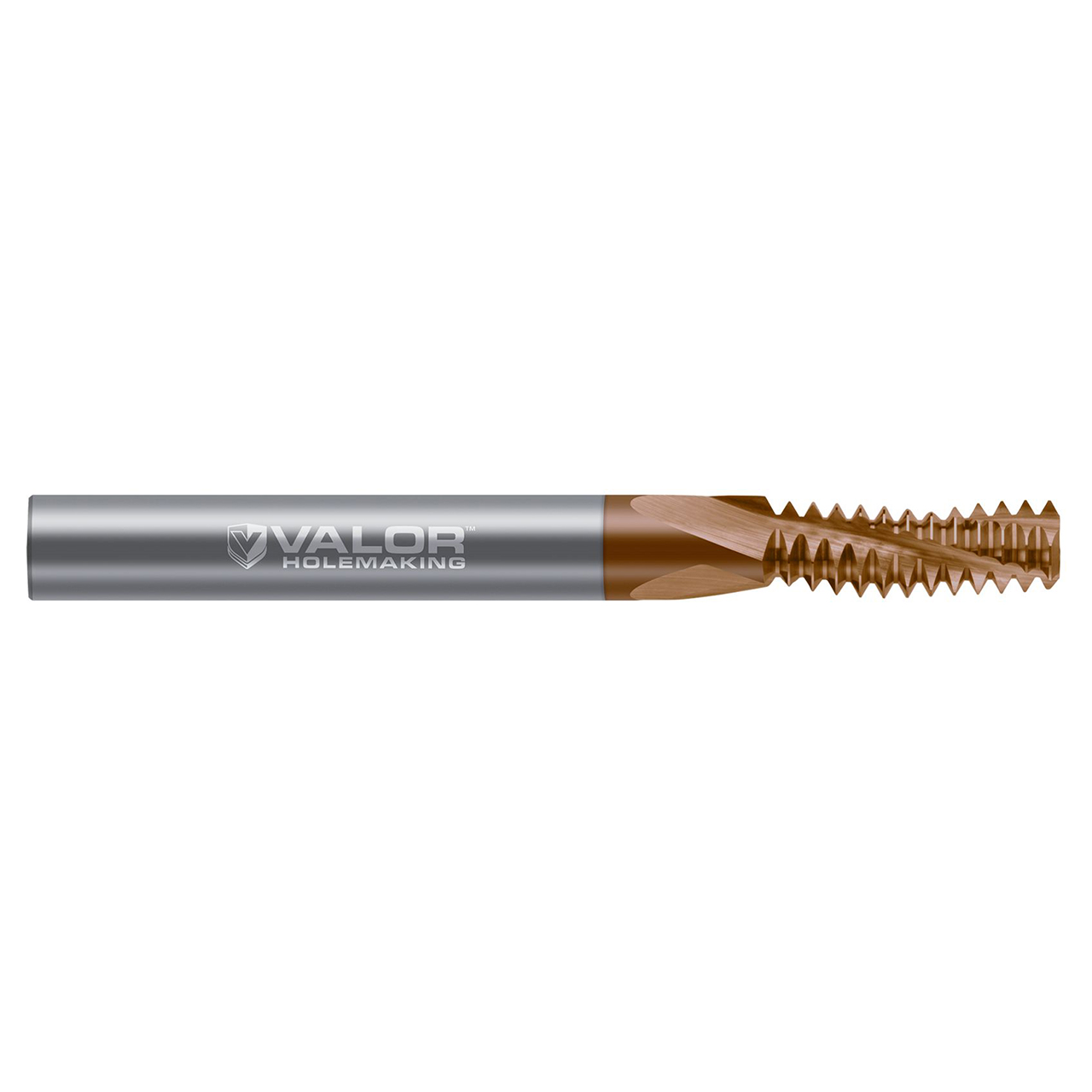

Valor V547751-X | 0.3700" Cutter Diameter x 0.3750" (3/8) Shank x 1.0000" (1) LOC 6 Flute Val-Max X Coated Helical Flute Thread Mill

$298.70
Brand:
Valor
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3700"
Cutter Diameter (mm):
9.4mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
6
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Finish/Coating:
Val-Max X
interval quantity:
1
SKU:
10269328
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

This offering of Valor holemaking multi-from thread mills is specially engineered to provide maximum versatility. Cut internal and external 60 Degree UN threads, and mill right hand and left hand threads with ease.

Features:

  • Amazingly versatile in right & left hand thread milling
  • Designed to mill right hand and left hand threads for added versatility
  • Able to cut larger threads of the same pitch
  • Offered in 3, 4, and 6 helical flutes
  • Uncoated option well-suited for Aluminum Alloys and other Non-Ferrous Alloys
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV547751-X
Cutter Diameter (Inch)0.3700"
Length of Cut (Inch)1.0000" (1)
Shank Diameter (Inch)0.3750" (3/8)
Overall Length (Inch)3.5000" (3-1/2)
Size1/2-20
Included Angle60 Degree
MetricN
Number of Flutes6
CoatingVal-Max X
